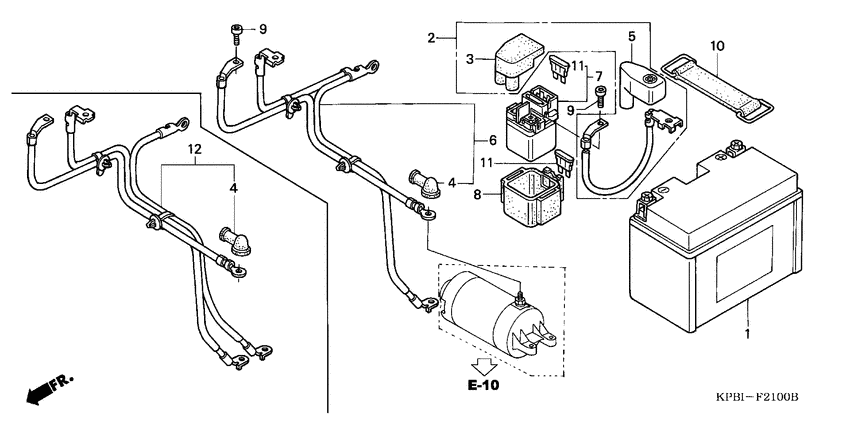

Battery Diagram Honda NSS250 Jazz
- Year
- 2003
- Model code
- NSS2503
- Sales region
- Europe
- Frame
- ZDCMF07A03F050001 - ZDCMF07A03F099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-MCF-643 Battery (ytz12s) |
31500-MCF-643 |
US $225.49 |
||
| replacement | |||||
|
1
|
1
31500-MCF-643AH Battery (ytz12s) |
31500-MCF-643AH |
US $234.26 |
||
|
2
|
2
32401-KPB-000 Cable |
32401-KPB-000 |
from US $20.99 |
||
|
3
|
3
32406-MT4-000 Cover |
32406-MT4-000 |
US $5.97 |
||
| replacement | |||||
|
3
|
3
32406-MT4-010 Cover |
32406-MT4-010 |
from US $5.92 |
||
|
4
|
4
32411-253-000 Cover, starter motor terminal |
32411-253-000 |
from US $4.29 |
||
| replacement | |||||
|
4
|
4
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
5
|
5
32414-MW0-000 Cover |
32414-MW0-000 |
from US $4.07 |
||
|
6
|
6
32610-KPB-000 Cable |
32610-KPB-000 |
from US $37.18 |
||
|
7
|
7
35850-MT4-000 Switch assy |
35850-MT4-000 |
from US $65.01 |
||
| replacement | |||||
|
7
|
7
35850-MT4-003 Sw, starter magnetic |
35850-MT4-003 |
from US $66.91 |
||
|
8
|
8
35856-MBG-003 Rubber |
35856-MBG-003 |
from US $6.51 |
||
|
9
|
9
90111-MR5-000 Bolt, socket (5x9) |
90111-MR5-000 |
from US $1.92 |
||
|
10
|
10
95012-13001 Band b2, battery |
95012-13001 |
from US $3.03 |
||
|
11
|
11
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
