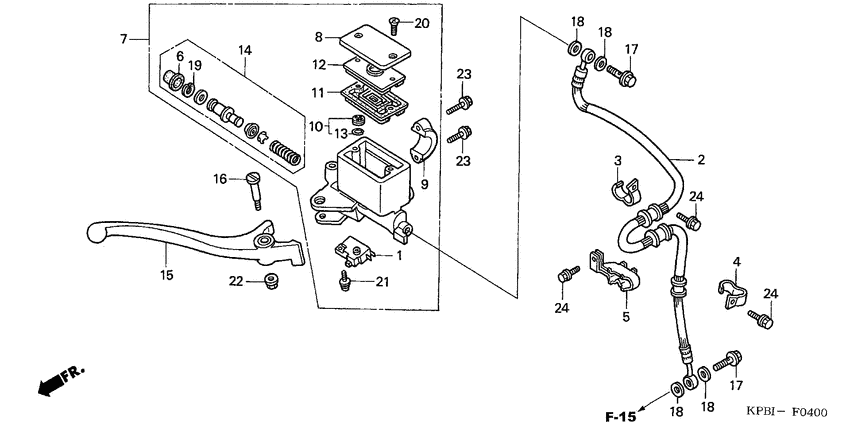

Fr. brake master cylinder Diagram Honda NSS250 Jazz
- Year
- 2003
- Model code
- NSS2503
- Sales region
- Europe
- Frame
- ZDCMF07A03F050001 - ZDCMF07A03F099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MA5-671 Switch, fr. stop |
35340-MA5-671 |
from US $14.55 |
||
|
2
|
2
45125-KPB-004 Hose, r. fr. brake |
45125-KPB-004 |
from US $58.17 |
||
|
3
|
3
45127-KFG-000 Clip a, brake hose |
45127-KFG-000 |
from US $3.70 |
||
|
4
|
4
45128-KFG-640 Clip b, brake hose |
45128-KFG-640 |
US $6.33 |
||
|
5
|
5
45135-KPB-000 Clamp a, brake hose |
45135-KPB-000 |
from US $6.36 |
||
|
6
|
6
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
7
|
7
45510-KPB-641 M/cyl sub-assy, fr. |
45510-KPB-641 |
from US $180.24 |
||
|
8
|
8
45513-KK1-771
Cap, master cylinder
|
45513-KK1-771 |
— | ||
| replacement | |||||
|
8
|
8
45513-HR0-305 Cap, master cylinder |
45513-HR0-305 |
US $6.89 |
||
|
9
|
9
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
10
|
10
45518-KY1-701 Separator |
45518-KY1-701 |
from US $6.51 |
||
|
11
|
11
45520-MG7-006 Diaphragm |
45520-MG7-006 |
from US $7.70 |
||
|
12
|
12
45521-HA2-006 Plate, diaphragm |
45521-HA2-006 |
from US $7.55 |
||
|
13
|
13
45523-KY1-701 Clip |
45523-KY1-701 |
from US $1.70 |
||
|
14
|
14
45530-471-831 Master cylinder set |
45530-471-831 |
from US $17.53 |
||
|
15
|
15
53175-MK7-671 Lever, r. handle |
53175-MK7-671 |
from US $18.09 |
||
|
16
|
16
90114-KT7-006 Bolt, handle lever |
90114-KT7-006 |
from US $6.36 |
||
|
17
|
17
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
18
|
18
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
19
|
19
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
20
|
20
93600-040-121-G
Screw
|
93600-040-121-G |
— | ||
| replacement | |||||
|
20
|
20
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
21
|
21
93893-040-121-7
Screw-washer
|
93893-040-121-7 |
— | ||
| replacement | |||||
|
21
|
21
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
22
|
22
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
23
|
23
96001-0602207 Bolt, flange (6x22) |
96001-0602207 |
from US $0.81 |
||
|
24
|
24
96300-060-120-0 Bolt, flange (6x12) |
96300-060-120-0 |
from US $0.59 |
||
