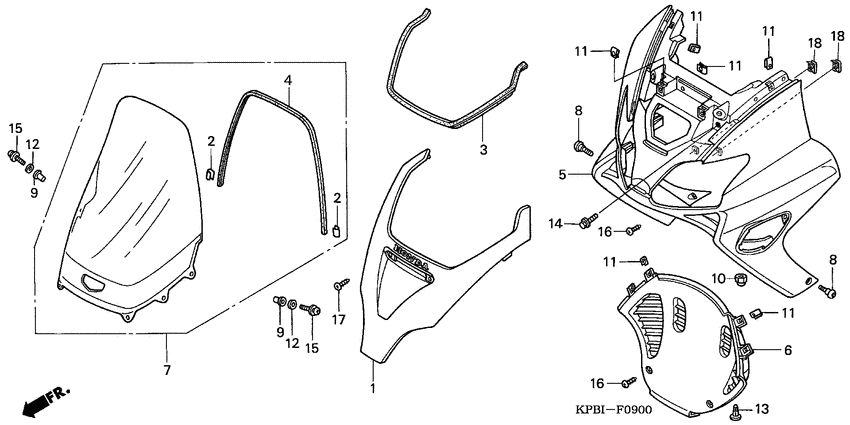

Front cover Diagram Honda NSS250 Jazz
- Year
- 2003
- Model code
- NSS2503
- Sales region
- Europe
- Frame
- ZDCMF07A03F050001 - ZDCMF07A03F099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64100-KPB-D30ZA
Set illust*type7*
|
64100-KPB-D30ZA |
— | ||
|
1
|
1
64100-KPB-D30ZB
Set illust*type8*
|
64100-KPB-D30ZB |
— | ||
|
1
|
1
64100-KPB-D30ZC
Set illust*type9*
|
64100-KPB-D30ZC |
— | ||
|
2
|
2
64102-MJ0-000 Clip, screen molding |
64102-MJ0-000 |
from US $3.70 |
||
|
3
|
3
64105-KPB-J10 Molding, windscreen |
64105-KPB-J10 |
from US $12.26 |
||
|
4
|
4
64106-KPB-640 Molding, windscreen |
64106-KPB-640 |
from US $10.35 |
||
|
5
|
5
64305-KPB-E10ZD Cover com*nh411m* |
64305-KPB-E10ZD |
US $599.82 |
||
|
5
|
5
64305-KPB-E10ZF
Cover com*nha13m*
|
64305-KPB-E10ZF |
— | ||
|
5
|
5
64305-KPB-E10ZG
Cover com*pb221m*
|
64305-KPB-E10ZG |
— | ||
|
6
|
6
64351-KPB-000ZE Cover, fr. *nh308r* |
64351-KPB-000ZE |
from US $46.33 |
||
|
6
|
6
64351-KPB-000ZG Cover, fr. *nh1* |
64351-KPB-000ZG |
from US $50.98 |
||
|
6
|
6
64351-KPB-000ZH Cover,fr l*pb136* |
64351-KPB-000ZH |
US $55.48 |
||
|
7
|
7
67100-KPB-E10
Set,wind screen
|
67100-KPB-E10 |
— | ||
|
8
|
8
90109-KW3-000 Screw (5x16) |
90109-KW3-000 |
from US $1.51 |
||
|
9
|
9
90111-KW3-003 Nut (5mm) |
90111-KW3-003 |
from US $1.55 |
||
|
10
|
10
90301-KPB-000 Nut, open stay (6mm) |
90301-KPB-000 |
from US $3.11 |
||
|
11
|
11
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
12
|
12
90504-964-000 Washer, thrust (5mm) |
90504-964-000 |
from US $0.40 |
||
|
13
|
13
90683-GAZ-003 Clip, trim |
90683-GAZ-003 |
from US $1.22 |
||
|
14
|
14
93414-060-160-8 Bolt-washer6X16 |
93414-060-160-8 |
from US $0.52 |
||
| replacement | |||||
|
14
|
14
93404-060-160-8 Bolt-washer6X16 |
93404-060-160-8 |
from US $0.52 |
||
|
15
|
15
93891-050-200-8 Screw-washer5X20 |
93891-050-200-8 |
from US $0.44 |
||
|
16
|
16
93903-34480 ScrewTAPPING, 4X16 |
93903-34480 |
from US $0.37 |
||
|
17
|
17
93903-34410 ScrewTAPPING, 4X16 |
93903-34410 |
from US $0.37 |
||
|
18
|
18
90677-KAN-961 Nut, clip (5mm) |
90677-KAN-961 |
from US $2.16 |
||
