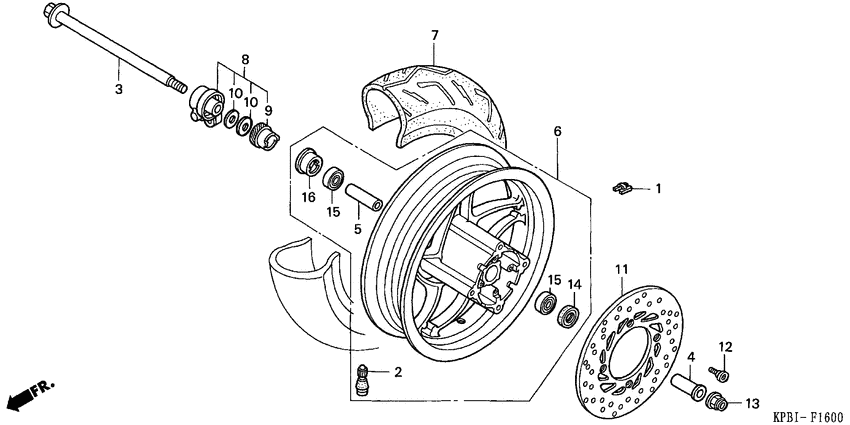

Front wheel Diagram Honda NSS250 Jazz
- Year
- 2003
- Model code
- NSS2503
- Sales region
- Europe
- Frame
- ZDCMF07A03F050001 - ZDCMF07A03F099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
42704-MB0-000 Weight (10g) |
42704-MB0-000 |
from US $9.03 |
||
| replacement | |||||
|
1
|
1
42704-MCF-D60 Weight, balance (10) |
42704-MCF-D60 |
from US $9.03 |
||
|
1
|
1
42705-MB0-000 Weight (20g) |
42705-MB0-000 |
US $14.50 |
||
| replacement | |||||
|
1
|
1
42705-MCF-D60 Weight, balance (20) |
42705-MCF-D60 |
from US $10.95 |
||
|
1
|
1
42706-MB0-000 Weight (30g) |
42706-MB0-000 |
US $17.65 |
||
| replacement | |||||
|
1
|
1
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
2
|
2
42753-ML7-003 Valve, rim |
42753-ML7-003 |
from US $7.84 |
||
|
2
|
2
42753-ML7-004 Valve, rim |
42753-ML7-004 |
from US $5.36 |
||
|
3
|
3
44301-KFG-000 Axle, fr. wheel |
44301-KFG-000 |
from US $16.86 |
||
|
4
|
4
44312-KPB-000 Collar a, fr. axle |
44312-KPB-000 |
from US $7.55 |
||
|
5
|
5
44620-KPB-000 Collar, fr |
44620-KPB-000 |
from US $6.07 |
||
|
6
|
6
44650-KPB-000ZB Wheel sub *nh146m* |
44650-KPB-000ZB |
US $447.34 |
||
| replacement | |||||
|
6
|
6
44650-KPB-750ZB Wheel sub *nh146m* |
44650-KPB-750ZB |
US $447.34 |
||
|
7
|
7
44711-KPB-643
Tire, fr.
|
44711-KPB-643 |
— | ||
|
7
|
7
44711-KPB-644
Tire,fr(dun)
|
44711-KPB-644 |
— | ||
|
8
|
8
44800-KFG-003 Box assy |
44800-KFG-003 |
from US $55.40 |
||
|
9
|
9
44806-KFG-000 Gear, speedometer |
44806-KFG-000 |
from US $11.29 |
||
|
10
|
10
44809-170-003 Washer |
44809-170-003 |
from US $2.53 |
||
|
11
|
11
45351-KFG-003 Disk, l. fr. brake |
45351-KFG-003 |
from US $202.64 |
||
|
12
|
12
90105-KL8-741 Bolt, fr. (8x24) |
90105-KL8-741 |
from US $4 |
||
|
13
|
13
90306-KF0-003 Nut, flange, 12mm |
90306-KF0-003 |
from US $3.26 |
||
|
14
|
14
90754-GC8-003 Dust seal (20x32x5) |
90754-GC8-003 |
from US $4.79 |
||
| replacement | |||||
|
14
|
14
90754-GC8-005 Dust seal (20x32x5) |
90754-GC8-005 |
from US $4.29 |
||
|
15
|
15
91051-KFG-005 Bearing (6201u) |
91051-KFG-005 |
from US $10.66 |
||
|
16
|
16
91258-KM1-004 Seal |
91258-KM1-004 |
from US $6.51 |
||
