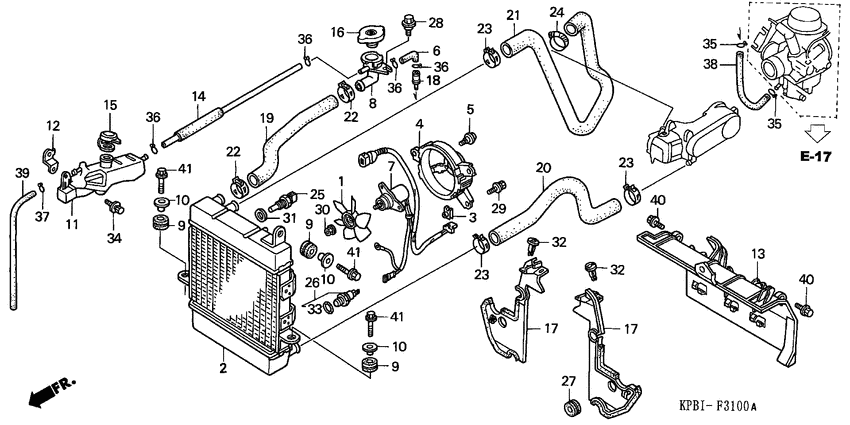

Radiator Diagram Honda NSS250 Jazz
- Year
- 2003
- Model code
- NSS2503
- Sales region
- Europe
- Frame
- ZDCMF07A03F050001 - ZDCMF07A03F099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19009-KT7-000 Fan, cooling |
19009-KT7-000 |
from US $37.67 |
||
|
2
|
2
19010-KFG-J01
Radiator
|
19010-KFG-J01 |
— | ||
| replacement | |||||
|
2
|
2
19010-KTB-003 Radiator |
19010-KTB-003 |
from US $352.77 |
||
|
3
|
3
19014-KEA-003 Nut, set |
19014-KEA-003 |
from US $2.25 |
||
|
4
|
4
19015-KFG-J01 Shroud |
19015-KFG-J01 |
US $54.93 |
||
|
5
|
5
19016-KEA-003 Screw, pan (4x8.5) |
19016-KEA-003 |
from US $1.70 |
||
|
6
|
6
19017-KEY-900
Tube,filler
|
19017-KEY-900 |
— | ||
|
7
|
7
19030-KFG-J01 Motor, cooling fan |
19030-KFG-J01 |
US $173.47 |
||
|
8
|
8
19039-KM1-004 Neck, filler |
19039-KM1-004 |
from US $14.80 |
||
|
9
|
9
19051-KA3-830 Rubber, radiator mounting |
19051-KA3-830 |
from US $1.89 |
||
|
10
|
10
19052-MN8-000
Collar
|
19052-MN8-000 |
— | ||
| replacement | |||||
|
10
|
10
19052-MGH-640 Collar |
19052-MGH-640 |
from US $2.03 |
||
|
11
|
11
19101-KEY-900
Tank,reserve
|
19101-KEY-900 |
— | ||
|
12
|
12
19102-KEY-900
Stay,reserve tank
|
19102-KEY-900 |
— | ||
|
13
|
13
19103-KFG-000 Duct b, air |
19103-KFG-000 |
from US $32.81 |
||
|
14
|
14
19104-KPB-000 Tube, reserve tank |
19104-KPB-000 |
US $16.95 |
||
|
15
|
15
19104-MB0-700 Cap, reserve tank |
19104-MB0-700 |
from US $5.27 |
||
|
16
|
16
19111-KE1-003 Cap, radiator filler |
19111-KE1-003 |
US $30.82 |
||
| replacement | |||||
|
16
|
16
19111-KE1-013 Cap, radiator filler |
19111-KE1-013 |
from US $32.99 |
||
|
17
|
17
19120-KFG-000 Duct a, air |
19120-KFG-000 |
from US $21.98 |
||
|
18
|
18
19126-KM1-010 Joint, tube |
19126-KM1-010 |
from US $2.29 |
||
|
19
|
19
19126-KPB-000 Hose, filler |
19126-KPB-000 |
from US $10.01 |
||
|
20
|
20
19501-KFG-J00 Hose a, water |
19501-KFG-J00 |
from US $15.78 |
||
|
21
|
21
19503-KFG-J00 Hose b, water |
19503-KFG-J00 |
from US $20.13 |
||
|
22
|
22
19513-MF5-000 Clamp (27mm) |
19513-MF5-000 |
US $10.68 |
||
| replacement | |||||
|
22
|
22
19517-ML7-691 Clamp, hose (22-29) |
19517-ML7-691 |
from US $7.25 |
||
|
23
|
23
19514-ME9-003 Clip b, hose |
19514-ME9-003 |
from US $4.59 |
||
|
24
|
24
19517-ML7-691 Clamp, hose (22-29) |
19517-ML7-691 |
from US $7.25 |
||
|
25
|
25
36151-KFG-003 Sensor |
36151-KFG-003 |
from US $45.53 |
||
|
26
|
26
37760-MT2-003 Switch, thermostat |
37760-MT2-003 |
US $87.67 |
||
| replacement | |||||
|
26
|
26
37760-MR1-003 Switch assy., thermo |
37760-MR1-003 |
from US $42.79 |
||
|
27
|
27
82871-671-000 GrommetDRAIN HOLE, 25MM |
82871-671-000 |
from US $2.03 |
||
|
28
|
28
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
29
|
29
90120-KCR-003 Bolt-washer (6x16) |
90120-KCR-003 |
from US $2.74 |
||
|
30
|
30
90308-KM3-003 Nut, toothed (3mm) |
90308-KM3-003 |
from US $1.92 |
||
|
31
|
31
90454-MC7-000 Washer (12mm) |
90454-MC7-000 |
from US $2.22 |
||
|
32
|
32
90683-GAZ-003 Clip, trim |
90683-GAZ-003 |
from US $1.22 |
||
|
33
|
33
91307-611-000 O-ring13.5X1.4 |
91307-611-000 |
from US $1.55 |
||
| replacement | |||||
|
33
|
33
91307-PH7-660 O-ring13.5X1.4 |
91307-PH7-660 |
from US $2.44 |
||
|
34
|
34
93404-060-120-8 Bolt-washer6X12 |
93404-060-120-8 |
from US $0.56 |
||
| replacement | |||||
|
34
|
34
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
35
|
35
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
36
|
36
95002-02120 ClipTUBE (B12) |
95002-02120 |
from US $0.52 |
||
|
37
|
37
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.44 |
||
|
38
|
38
19106-KFG-860
Tube b,carb-fille
|
19106-KFG-860 |
— | ||
|
39
|
39
95005-704-203-0 *95005-70003-30m |
95005-704-203-0 |
US $3.40 |
||
|
40
|
40
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
41
|
41
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
