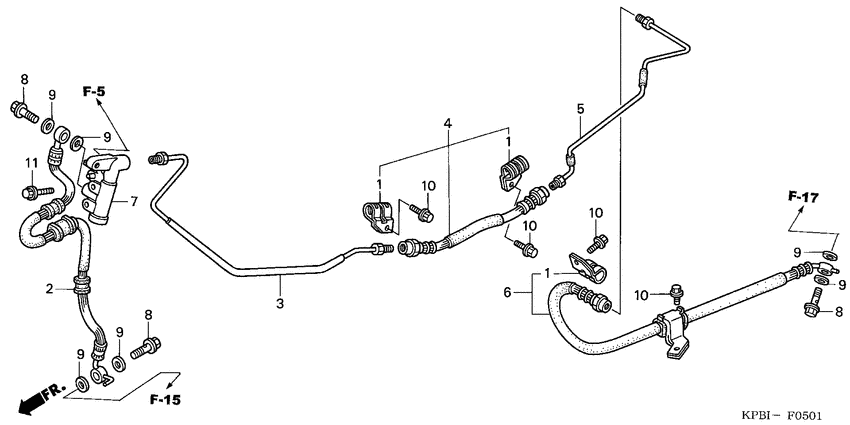

Rear brake pipe Diagram Honda NSS250 Jazz
- Year
- 2003
- Model code
- NSS2503
- Sales region
- Europe
- Frame
- ZDCMF07A03F050001 - ZDCMF07A03F099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43159-KFG-000 Clamp, rr |
43159-KFG-000 |
from US $3.55 |
||
|
2
|
2
43312-KPB-004 Hose b, rr. brake |
43312-KPB-004 |
from US $61.81 |
||
|
3
|
3
43313-KPB-000 Pipe a, rr. brake |
43313-KPB-000 |
from US $16.47 |
||
|
4
|
4
43314-KPB-004 Hose c, rr. brake |
43314-KPB-004 |
from US $33.13 |
||
|
5
|
5
43315-KFG-000 Pipe b, rr. brake |
43315-KFG-000 |
from US $11.02 |
||
|
6
|
6
43316-KPB-004 Hose d, rr. brake |
43316-KPB-004 |
from US $45.56 |
||
|
7
|
7
46300-KFG-J21 Valve assy., delay |
46300-KFG-J21 |
US $133.62 |
||
| replacement | |||||
|
7
|
7
46300-KFG-J22 Valve assy., delay |
46300-KFG-J22 |
US $186.81 |
||
|
8
|
8
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
9
|
9
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
10
|
10
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
11
|
11
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
