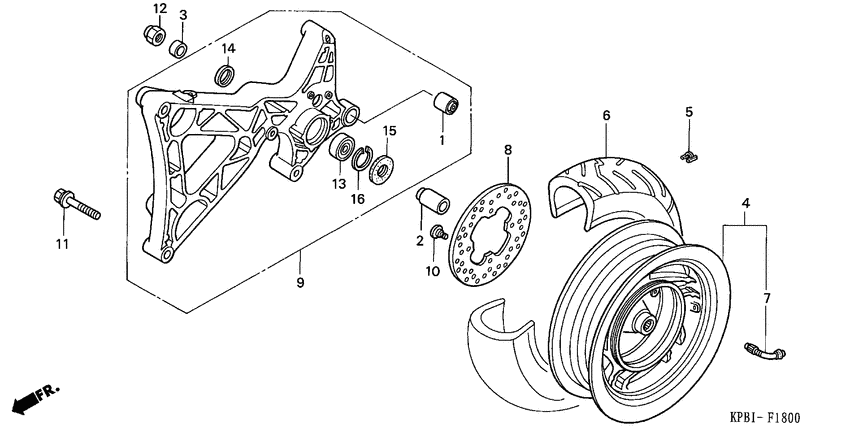

Rear wheel Diagram Honda NSS250 Jazz
- Year
- 2003
- Model code
- NSS2503
- Sales region
- Europe
- Frame
- ZDCMF07A03F050001 - ZDCMF07A03F099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11203-KAB-000 Bush, shock absorber |
11203-KAB-000 |
from US $5.62 |
||
|
2
|
2
42311-KFG-J00 Collar, rr. axle |
42311-KFG-J00 |
from US $18.63 |
||
|
3
|
3
42312-KEY-900 Collar b, rr. axle |
42312-KEY-900 |
from US $4.37 |
||
|
4
|
4
42650-KPB-000ZB Wheel sub *nh146m* |
42650-KPB-000ZB |
US $610.88 |
||
| replacement | |||||
|
4
|
4
42650-KPB-750ZB Wheel sub *nh146m* |
42650-KPB-750ZB |
US $610.88 |
||
|
5
|
5
42704-MB0-000 Weight (10g) |
42704-MB0-000 |
from US $9.03 |
||
| replacement | |||||
|
5
|
5
42704-MCF-D60 Weight, balance (10) |
42704-MCF-D60 |
from US $9.03 |
||
|
5
|
5
42705-MB0-000 Weight (20g) |
42705-MB0-000 |
US $14.50 |
||
| replacement | |||||
|
5
|
5
42705-MCF-D60 Weight, balance (20) |
42705-MCF-D60 |
from US $10.95 |
||
|
5
|
5
42706-MB0-000 Weight (30g) |
42706-MB0-000 |
US $17.65 |
||
| replacement | |||||
|
5
|
5
42706-MCF-D60 Weight, balance (30) |
42706-MCF-D60 |
from US $10.95 |
||
|
6
|
6
42711-KFG-904 Tire, rr. |
42711-KFG-904 |
US $132.18 |
||
|
6
|
6
42711-KPB-643
Tire,rr(dun)
|
42711-KPB-643 |
— | ||
|
7
|
7
42753-KJ9-003 Valve, rim |
42753-KJ9-003 |
from US $7.49 |
||
|
7
|
7
42753-KJ9-004 Valve, rim |
42753-KJ9-004 |
from US $13.62 |
||
| replacement | |||||
|
7
|
7
42753-KJ9-003 Valve, rim |
42753-KJ9-003 |
from US $7.49 |
||
|
8
|
8
43251-KFK-000 Disk, rr. brake |
43251-KFK-000 |
from US $248.88 |
||
|
9
|
9
52000-KPB-000 Swingarm assy. |
52000-KPB-000 |
US $300.56 |
||
|
10
|
10
90105-KL8-741 Bolt, fr. (8x24) |
90105-KL8-741 |
from US $4 |
||
|
11
|
11
90132-KPB-000 Bolt-washer (10x55) |
90132-KPB-000 |
US $2.33 |
||
|
12
|
12
90305-KBN-901 Nut, u (16mm) |
90305-KBN-901 |
from US $8.58 |
||
|
13
|
13
91051-KS4-003 Bearing (6303) |
91051-KS4-003 |
from US $17.27 |
||
|
14
|
14
91258-HB3-003 Dust seal, 37x25x6 |
91258-HB3-003 |
from US $8.44 |
||
|
15
|
15
91259-KM1-003 Seal (25x47x5) |
91259-KM1-003 |
from US $7.84 |
||
|
16
|
16
9452047000 Circlip, internal, 47mm |
9452047000 |
from US $1.48 |
||
