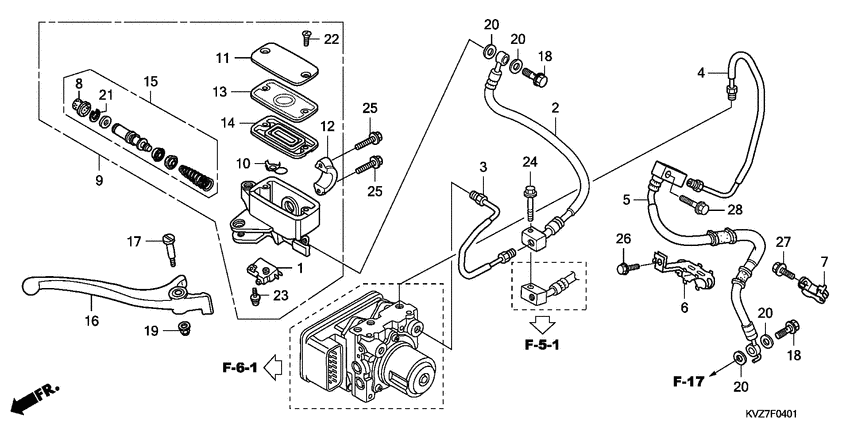

Front brake master cylinder (NSS250A) Diagram Honda NSS250 Forza
- Year
- 2008
- Model code
- NSS250A8
- Sales region
- France
- Frame
- JH2MF10B*8K000001 - JH2MF10B*8K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MM5-600 Switch, fr. stop |
35340-MM5-600 |
from US $21.90 |
||
|
2
|
2
45125-KVZ-661 Hose comp. aFR. BRAKE |
45125-KVZ-661 |
US $83.08 |
||
|
3
|
3
45126-KVZ-660 Pipe comp. bFR. BRAKE |
45126-KVZ-660 |
US $10.49 |
||
|
4
|
4
45127-KVZ-660 Pipe comp. cFR. BRAKE |
45127-KVZ-660 |
US $11.87 |
||
|
5
|
5
45128-KVZ-632 Hose comp. dFR. BRAKE |
45128-KVZ-632 |
US $49.37 |
||
|
6
|
6
45135-KVZ-660 Clamper comp. aBRAKE HOSE |
45135-KVZ-660 |
from US $7.85 |
||
|
7
|
7
45160-KVZ-660 Clamper comp. bBRAKE HOSE |
45160-KVZ-660 |
from US $7.55 |
||
|
8
|
8
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
9
|
9
45510-MCT-006 M/cyl sub-assy, fr. |
45510-MCT-006 |
from US $131.92 |
||
| replacement | |||||
|
9
|
9
45510-MGF-305 M/cyl sub-assy, fr. |
45510-MGF-305 |
from US $147.85 |
||
|
10
|
10
45512-MA6-006 Protector |
45512-MA6-006 |
from US $3.11 |
||
|
11
|
11
45513-MM5-016 Cap, master cylinder |
45513-MM5-016 |
from US $16.63 |
||
|
12
|
12
45517-166-006 Holder |
45517-166-006 |
from US $11.81 |
||
|
13
|
13
45518-MM5-006 Plate, diaphragm |
45518-MM5-006 |
from US $8.79 |
||
|
14
|
14
45520-MM5-006 Diaphragm |
45520-MM5-006 |
from US $11.25 |
||
|
15
|
15
45530-MN9-305 Master cylinder set |
45530-MN9-305 |
from US $22.55 |
||
|
16
|
16
53175-ML5-006 Lever, r. handlebar |
53175-ML5-006 |
from US $18.22 |
||
| replacement | |||||
|
16
|
16
53175-MFR-305 Lever, r. handlebar |
53175-MFR-305 |
from US $22.88 |
||
|
17
|
17
90114-MA5-671 Bolt, r |
90114-MA5-671 |
from US $4.07 |
||
|
18
|
18
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
19
|
19
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
20
|
20
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
21
|
21
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
22
|
22
93600-040-121-G
Screw
|
93600-040-121-G |
— | ||
| replacement | |||||
|
22
|
22
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
23
|
23
93893-040-121-7
Screw-washer
|
93893-040-121-7 |
— | ||
| replacement | |||||
|
23
|
23
93893-040-120-7 Screw-washer4X12 |
93893-040-120-7 |
from US $0.52 |
||
|
24
|
24
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
25
|
25
96001-0602207 Bolt, flange (6x22) |
96001-0602207 |
from US $0.81 |
||
|
26
|
26
96300-0601207 Bolt, flange (6x12) |
96300-0601207 |
from US $0.59 |
||
|
27
|
27
96300-0601607 Bolt, flange (6x16) |
96300-0601607 |
US $0.59 |
||
|
28
|
28
96300-0602507 Bolt, flange (6x25) |
96300-0602507 |
from US $0.74 |
||
