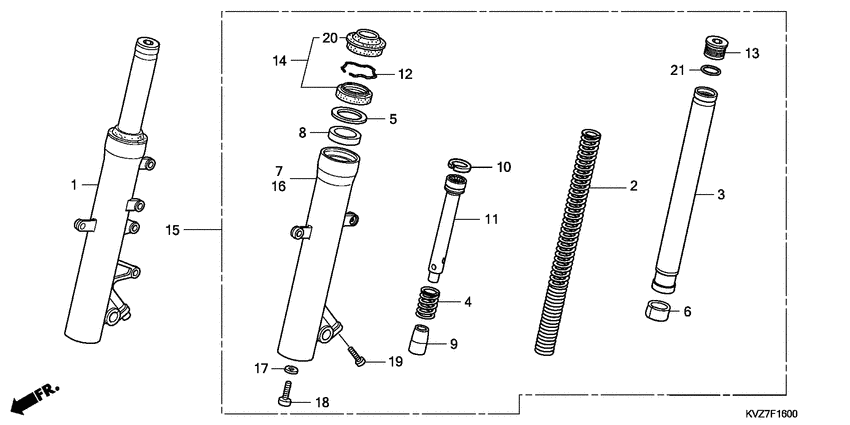

Front fork Diagram Honda NSS250 Forza
- Year
- 2008
- Model code
- NSS250A8
- Sales region
- France
- Frame
- JH2MF10B*8K000001 - JH2MF10B*8K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-KVZ-631 Fork assyR. FR. |
51400-KVZ-631 |
US $372.64 |
||
|
2
|
2
51401-KVZ-631
Spring
|
51401-KVZ-631 |
— | ||
|
3
|
3
51410-KVZ-631 Pipe compFR. FORK |
51410-KVZ-631 |
US $140.08 |
||
|
4
|
4
51411-MF5-752
Spg.,rebound
|
51411-MF5-752 |
— | ||
|
5
|
5
51412-KK0-004 Washer |
51412-KK0-004 |
US $4 |
||
|
6
|
6
51415-KVZ-631 BushSLIDER |
51415-KVZ-631 |
US $8.88 |
||
|
7
|
7
51421-KVZ-631 CaseR. BOTTOM |
51421-KVZ-631 |
US $209.79 |
||
|
8
|
8
51424-KVZ-631 BushGUIDE |
51424-KVZ-631 |
US $7.10 |
||
|
9
|
9
51431-KVZ-631 PieceOIL LOCK |
51431-KVZ-631 |
US $9.92 |
||
|
10
|
10
51437-KVZ-631 RingPISTON |
51437-KVZ-631 |
US $3.70 |
||
|
11
|
11
51440-KVZ-631 PipeSEAT |
51440-KVZ-631 |
US $29.43 |
||
|
12
|
12
51447-KK0-004 Ring, snap |
51447-KK0-004 |
from US $2.81 |
||
|
13
|
13
51450-KVZ-631 BoltFR. FORK |
51450-KVZ-631 |
US $15.10 |
||
|
14
|
14
51490-KVZ-631 Seal setFR. FORK |
51490-KVZ-631 |
US $22.58 |
||
|
15
|
15
51500-KVZ-631 Fork assyL. FR. |
51500-KVZ-631 |
US $372.64 |
||
|
16
|
16
51521-KVZ-631 CaseL. BOTTOM |
51521-KVZ-631 |
US $209.79 |
||
|
17
|
17
52442-KA3-731 Washer, oil bolt |
52442-KA3-731 |
from US $2 |
||
|
18
|
18
90116-KK0-004 Bolt, socket (10x25) |
90116-KK0-004 |
from US $3.77 |
||
|
19
|
19
90120-MBB-000 Bolt, socket (8x25) |
90120-MBB-000 |
from US $2.15 |
||
|
20
|
20
91254-KVZ-631 SealDUST |
91254-KVZ-631 |
US $13.47 |
||
|
21
|
21
91356-KVZ-631 O-ring25X3.5 |
91356-KVZ-631 |
US $2.44 |
