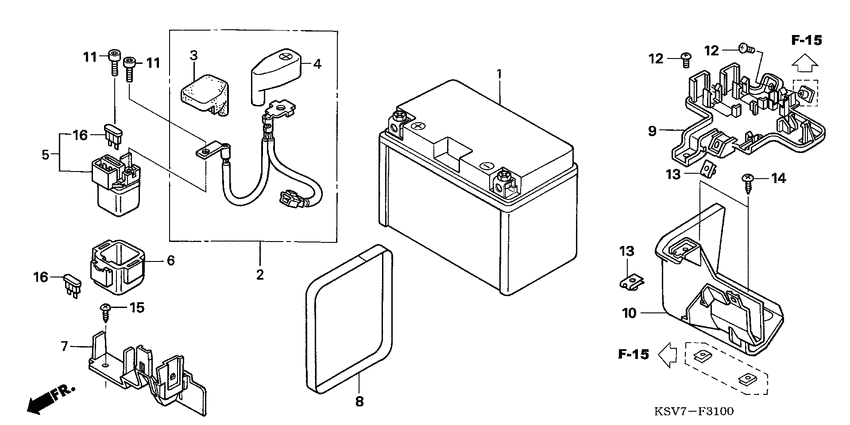

Battery Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- France
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-MCF-642
Battery 12a wet(f
|
31500-MCF-642 |
— | ||
|
1
|
1
31500-MCF-643 Battery (ytz12s) |
31500-MCF-643 |
US $225.49 |
||
| replacement | |||||
|
1
|
1
31500-MCF-643AH Battery (ytz12s) |
31500-MCF-643AH |
US $234.26 |
||
|
2
|
2
32401-KSV-J00 CableSTARTER MAGNETIC BATTERY |
32401-KSV-J00 |
US $26.20 |
||
|
3
|
3
32406-KAZ-000 Cover |
32406-KAZ-000 |
US $8.60 |
||
| replacement | |||||
|
3
|
3
32406-KAZ-010 Cover |
32406-KAZ-010 |
from US $5.33 |
||
|
4
|
4
32414-MW0-000 Cover |
32414-MW0-000 |
from US $4.07 |
||
|
5
|
5
35850-MR5-007 Switch assy |
35850-MR5-007 |
from US $73.44 |
||
|
6
|
6
35856-MBG-003 Rubber |
35856-MBG-003 |
from US $6.51 |
||
|
7
|
7
50327-KSV-J00 BaseFUSE BOX UPPER |
50327-KSV-J00 |
US $8.47 |
||
|
8
|
8
50328-KSV-J00 TapeBATTERY LIFT |
50328-KSV-J00 |
from US $6.22 |
||
|
9
|
9
50329-KSV-J01 BandBATTERY |
50329-KSV-J01 |
US $7.10 |
||
|
10
|
10
50337-KSV-J00 BaseFUSE BOX LOWER |
50337-KSV-J00 |
US $8.32 |
||
|
11
|
11
90111-MR5-000 Bolt, socket (5x9) |
90111-MR5-000 |
from US $1.92 |
||
|
12
|
12
90113-GS6-010 Screw, pan, 6mm |
90113-GS6-010 |
from US $3.11 |
||
|
13
|
13
90305-GEE-710 Nut, clip (6mm) |
90305-GEE-710 |
from US $1.70 |
||
|
14
|
14
93903-34380 ScrewTAPPING, 4X12 |
93903-34380 |
from US $0.41 |
||
|
15
|
15
93903-35310 ScrewTAPPING, 5X16 |
93903-35310 |
from US $0.37 |
||
|
16
|
16
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
