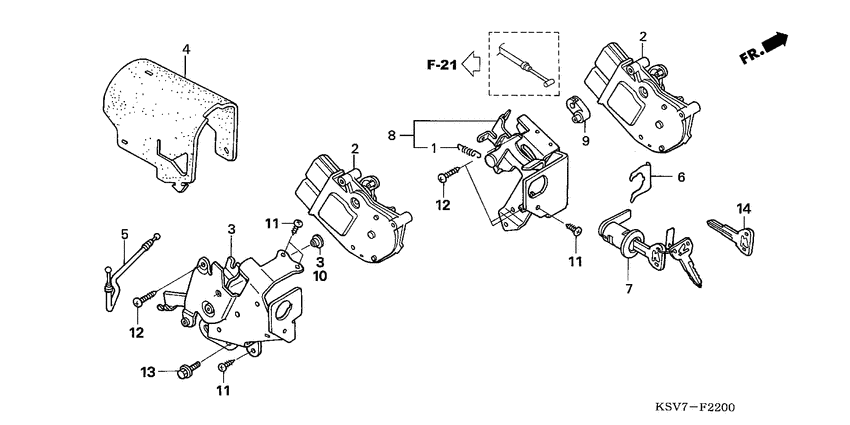

Actuator Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16562-ZA0-980 Spring, throttle return |
16562-ZA0-980 |
US $2.96 |
||
|
2
|
2
36520-KSV-J02 Actuator assy |
36520-KSV-J02 |
from US $74.41 |
||
|
3
|
3
64410-KSV-J01
Opener comp.
- 5K003061 |
64410-KSV-J01 |
— | ||
|
3
|
3
64410-KSV-J02 Opener comp.LID 5K003062 - |
64410-KSV-J02 |
US $22.44 |
||
|
4
|
4
64431-KSV-J01 RubberACTUATOR |
64431-KSV-J01 |
US $24.93 |
||
|
5
|
5
64485-KSV-J01 CableL. INNER LOCK |
64485-KSV-J01 |
US $16.86 |
||
|
6
|
6
75581-GN8-920 Spring |
75581-GN8-920 |
from US $3.70 |
||
|
7
|
7
77225-KSV-J00 Lock assySEAT |
77225-KSV-J00 |
US $26.25 |
||
|
8
|
8
77230-KSV-J00
Stay comp
|
77230-KSV-J00 |
— | ||
|
9
|
9
77242-KSV-J00 JointCABLE |
77242-KSV-J00 |
from US $4.74 |
||
|
10
|
10
91456-371-770 Cap, socket bolt |
91456-371-770 |
from US $3.33 |
||
|
11
|
11
93903-34120 ScrewTAPPING, 4X8 |
93903-34120 |
from US $0.37 |
||
|
12
|
12
93903-34510 Screw.4x20 |
93903-34510 |
from US $0.37 |
||
|
13
|
13
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
14
|
14
35125-MAS-G01 Key, blank (type1) |
35125-MAS-G01 |
from US $12.14 |
