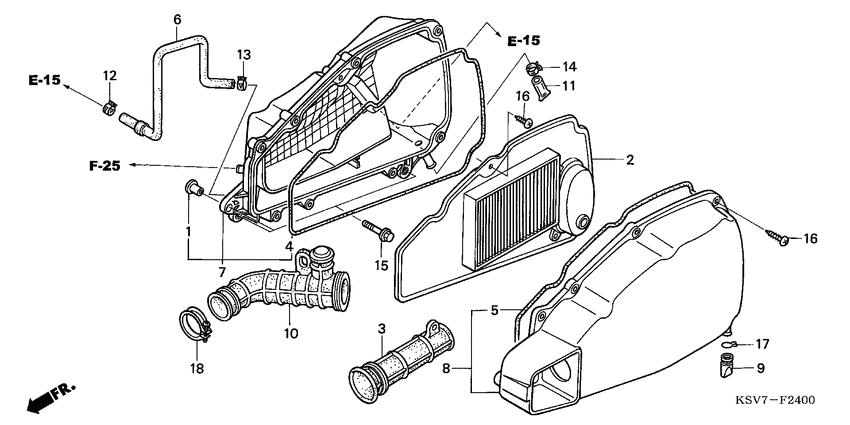

Air cleaner Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17208-GR1-010 Collar, air cleaner setting |
17208-GR1-010 |
from US $1.85 |
||
|
2
|
2
17210-KSV-J02 Element, air cleaner |
17210-KSV-J02 |
US $39.64 |
||
|
3
|
3
17212-KSV-J01 DuctAIR CLEANER |
17212-KSV-J01 |
US $5.92 |
||
|
4
|
4
17213-KSV-J00
Seal
|
17213-KSV-J00 |
— | ||
|
5
|
5
17214-KSV-J00
Seal
|
17214-KSV-J00 |
— | ||
|
6
|
6
17218-KSV-J00
Tube
|
17218-KSV-J00 |
— | ||
|
7
|
7
17221-KSV-J01 CaseAIR CLEANER |
17221-KSV-J01 |
US $49.10 |
||
|
8
|
8
17231-KSV-J01 CoverAIR CLEANER |
17231-KSV-J01 |
US $39.30 |
||
|
9
|
9
17234-KCW-871 Tube |
17234-KCW-871 |
from US $2.96 |
||
|
10
|
10
17254-KSV-J00
Tube
|
17254-KSV-J00 |
— | ||
|
11
|
11
17261-KSV-J00 Tube, drain |
17261-KSV-J00 |
from US $4.44 |
||
|
12
|
12
90646-657-000 ClipAIR HOSE, 16MM |
90646-657-000 |
from US $2.89 |
||
|
13
|
13
90682-SA0-671 ClampCANISTER HOSE |
90682-SA0-671 |
from US $2.96 |
||
|
14
|
14
91406-MS8-000 Clamp, tube (d14.5) |
91406-MS8-000 |
from US $3.11 |
||
|
15
|
15
93404-0603000 Bolt-washer (6x30) |
93404-0603000 |
from US $0.59 |
||
|
16
|
16
93903-25480 ScrewTAPPING, 5X20 |
93903-25480 |
from US $0.37 |
||
|
17
|
17
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.44 |
||
|
18
|
18
95018-54320 BandAIR CLEANER CONNECTING TUBE (54) |
95018-54320 |
US $3.26 |
