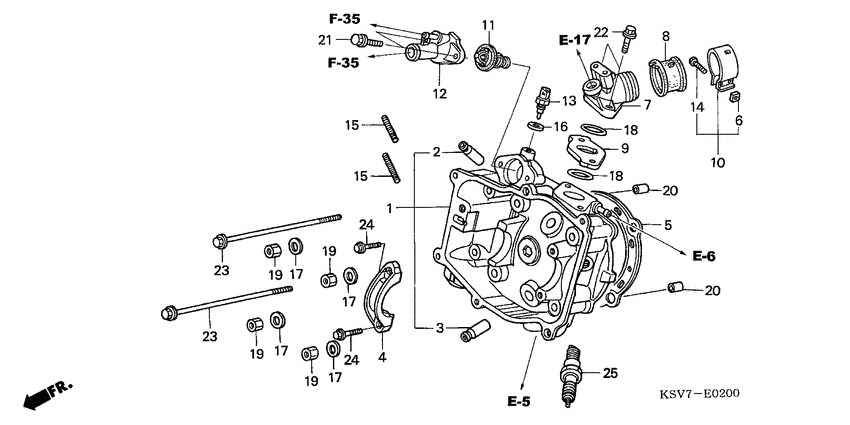

Cylinder head Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12200-KSV-J11 Head compCYLINDER |
12200-KSV-J11 |
US $468.86 |
||
|
2
|
2
12204-KE8-305
Guide, valve (o.s.)
|
12204-KE8-305 |
— | ||
| replacement | |||||
|
2
|
2
12204-KE7-305 Guide, valve (os) |
12204-KE7-305 |
US $13.02 |
||
|
3
|
3
12206-KSV-305 GuideEX. VALVE (O.S.) |
12206-KSV-305 |
US $14.78 |
||
|
4
|
4
12211-KAB-000 Holder, cam |
12211-KAB-000 |
from US $17.46 |
||
|
5
|
5
12251-KSV-J11 GasketCYLINDER HEAD |
12251-KSV-J11 |
US $20.79 |
||
|
6
|
6
16222-MV4-300 Nut, square (5mm) |
16222-MV4-300 |
from US $1.48 |
||
|
7
|
7
17111-KSV-J10 PipeIN. |
17111-KSV-J10 |
US $38.17 |
||
|
8
|
8
17112-KSV-J10 InsulatorTHROTTLE BODY |
17112-KSV-J10 |
US $13.91 |
||
|
9
|
9
17119-KSV-J10 InsulatorIN. PIPE |
17119-KSV-J10 |
US $12.49 |
||
|
10
|
10
17256-KSV-J10 BandINSULATOR |
17256-KSV-J10 |
US $13.41 |
||
|
11
|
11
19300-KGF-911 Thermostat |
19300-KGF-911 |
from US $50.59 |
||
|
12
|
12
19315-KSV-J10 CoverTHERMOSTAT |
19315-KSV-J10 |
US $18.46 |
||
|
13
|
13
37870-KRJ-901 Sensor assy., water |
37870-KRJ-901 |
from US $32.23 |
||
|
14
|
14
90005-MEJ-000 Cover,starter |
90005-MEJ-000 |
from US $1.17 |
||
|
15
|
15
90033-KAB-770 Bolt (39mm) |
90033-KAB-770 |
from US $2.66 |
||
|
16
|
16
90454-MC7-000 Washer (12mm) |
90454-MC7-000 |
from US $2.22 |
||
|
17
|
17
90483-028-000 Washer, 8mm |
90483-028-000 |
from US $1.92 |
||
|
18
|
18
91301-KSV-J11 O-ring34.5X2.5 |
91301-KSV-J11 |
US $3.55 |
||
|
19
|
19
94030-08280 Nut, hex., 8mm |
94030-08280 |
from US $0.47 |
||
|
20
|
20
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
21
|
21
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
||
|
22
|
22
95701-060-300-0 BoltFLANGE, 6X30 |
95701-060-300-0 |
from US $0.59 |
||
|
23
|
23
95701-0613000 Bolt, flange (6x130) |
95701-0613000 |
from US $1.48 |
||
|
24
|
24
96001-0602200 Bolt, flange, 6x22 |
96001-0602200 |
from US $0.74 |
||
|
25
|
25
98069-57916 Spark plug (dpr7ea-9) |
98069-57916 |
from US $3.49 |
||
|
25
|
25
9806957926 S/plg (x22epr-u9) |
9806957926 |
from US $3.71 |
||
