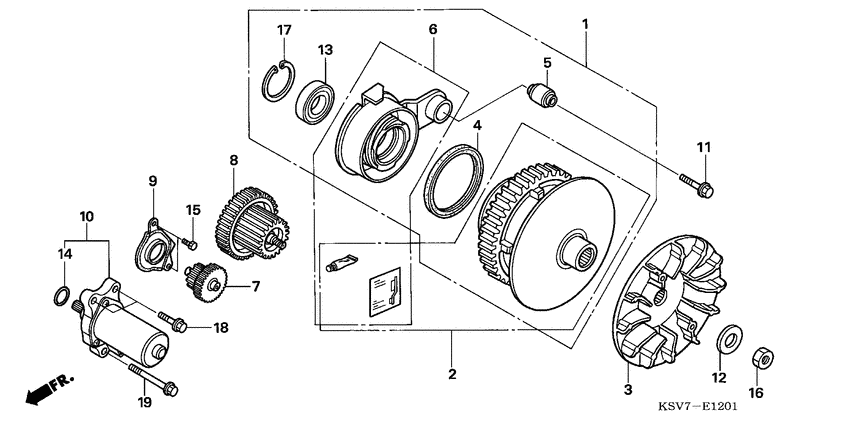

Drive pulley Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22030-KSV-J32 Pulley assyMOVABLE DRIVE - 5009344 |
22030-KSV-J32 |
US $722.16 |
||
|
1
|
1
22030-KSV-K00 Pulley assyMOVABLE DRIVE 5009345 - |
22030-KSV-K00 |
US $690.88 |
||
|
2
|
2
22035-KSV-J32 Face set, movable drive |
22035-KSV-J32 |
US $861 |
||
|
3
|
3
22102-KSV-J10 Face, drive |
22102-KSV-J10 |
US $66.87 |
||
|
4
|
4
22117-KSV-J31
Seal
|
22117-KSV-J31 |
— | ||
|
5
|
5
22215-KSV-J30 RubberPIVOT |
22215-KSV-J30 |
US $8.93 |
||
|
6
|
6
22218-KSV-J31 Boss set |
22218-KSV-J31 |
US $132.60 |
||
|
7
|
7
22321-KSV-J30 Gear aREDUCTION (67T/13T) |
22321-KSV-J30 |
US $63.08 |
||
|
8
|
8
22330-KSV-J30 Gear assy. bREDUCTION (22T/51T) |
22330-KSV-J30 |
US $113.56 |
||
|
9
|
9
22340-KSV-J30 Plate compDUST SEAL |
22340-KSV-J30 |
US $11.56 |
||
|
10
|
10
31300-KSV-D11
Motor assy.
- 5008997 |
31300-KSV-D11 |
— | ||
|
10
|
10
31300-KSV-D12 Motor assy.5008998 - |
31300-KSV-D12 |
US $330.48 |
||
|
11
|
11
90103-MBN-670 Bolt, flange, 8x42 |
90103-MBN-670 |
from US $1.48 |
||
|
12
|
12
90501-KBN-900 Washer (16mm) |
90501-KBN-900 |
from US $1.18 |
||
|
13
|
13
91004-KSV-J31 BearingRADIAL BALL, 60/28 |
91004-KSV-J31 |
US $23.49 |
||
|
14
|
14
91302-GF9-000 O-ring (16x1.5) |
91302-GF9-000 |
from US $2.15 |
||
|
15
|
15
93101-050-100-A BoltHEX., 5X10 |
93101-050-100-A |
US $0.37 |
||
|
16
|
16
94030-16200 Nut, hex., 16mm |
94030-16200 |
from US $0.81 |
||
|
17
|
17
94520-52150 CirclipINTERNAL, 52MM |
94520-52150 |
from US $1.48 |
||
|
18
|
18
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
||
|
19
|
19
95701-0606500 Bolt, flange, 6x65 |
95701-0606500 |
from US $0.81 |
