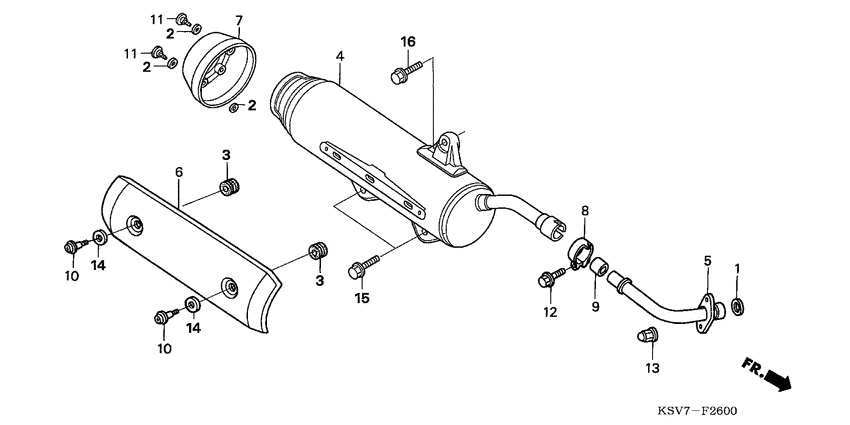

Exhaust muffler Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18291-KS4-690 Gasket, ex. pipe- 5K003236 |
18291-KS4-690 |
from US $6.02 |
||
|
1
|
1
18291-KSV-J01 GasketEX. PIPE 5K003237 - |
18291-KSV-J01 |
from US $7.16 |
||
|
2
|
2
18293-KSV-J00 BaseTAIL CAP |
18293-KSV-J00 |
US $1.85 |
||
|
3
|
3
18294-KSV-J00 Rubber |
18294-KSV-J00 |
from US $2.29 |
||
|
4
|
4
18300-KSV-D10 Muffler comp.EX. |
18300-KSV-D10 |
US $663.18 |
||
|
5
|
5
18301-KFG-000 Joint, ex. pipe |
18301-KFG-000 |
from US $48.54 |
||
|
6
|
6
18319-KPB-750 ProtectorMUFFLER |
18319-KPB-750 |
US $68 |
||
|
7
|
7
18350-KPB-751 Cover,tail cap |
18350-KPB-751 |
US $24.89 |
||
|
8
|
8
18373-KAB-000 Band, ex. pipe |
18373-KAB-000 |
from US $10.57 |
||
|
9
|
9
18391-MN1-670 Gasket, muffler |
18391-MN1-670 |
from US $16.05 |
||
|
10
|
10
90109-KSV-J00 ScrewPAN, 5X18 |
90109-KSV-J00 |
US $5.33 |
||
|
11
|
11
90114-KPB-750 Screw (5x14) |
90114-KPB-750 |
from US $1.60 |
||
|
12
|
12
90129-KFG-000 Bolt, flange (8x32) |
90129-KFG-000 |
from US $2.15 |
||
|
13
|
13
90304-ME1-670 Nut, cap (8mm) |
90304-ME1-670 |
from US $4.59 |
||
|
14
|
14
90505-KSV-J00 Washer8MM |
90505-KSV-J00 |
US $2.59 |
||
|
15
|
15
95701-1003507 Bolt, flange, 10x35 |
95701-1003507 |
from US $0.81 |
||
|
16
|
16
95701-1005007 Bolt, flange (10x50) |
95701-1005007 |
from US $0.89 |
