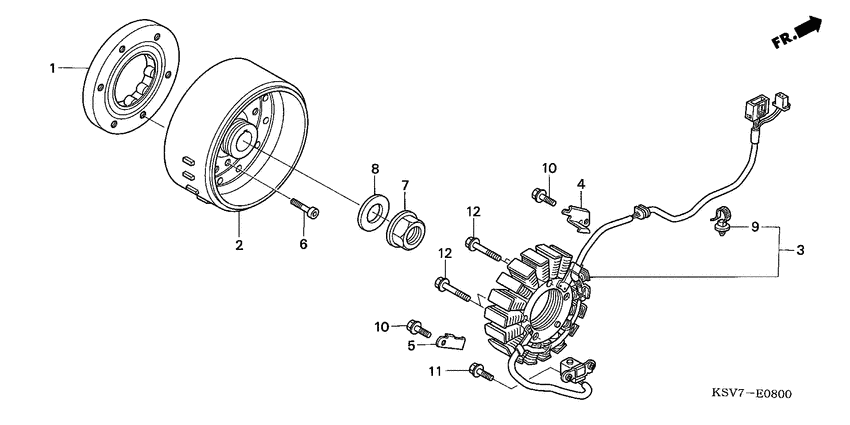

Generator Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28125-HN5-671 Clutch outer |
28125-HN5-671 |
from US $125.49 |
||
|
2
|
2
31110-KSV-J11 Flywheel comp. |
31110-KSV-J11 |
US $454.78 |
||
|
3
|
3
31120-KSV-J12 Stator Comp |
31120-KSV-J12 |
US $322.32 |
||
|
4
|
4
32961-KSV-J10 ClamperA.C. GENERATOR CORD |
32961-KSV-J10 |
US $3.32 |
||
|
5
|
5
32962-KSV-J10 ClamperPULSER CORD |
32962-KSV-J10 |
US $3.16 |
||
|
6
|
6
90002-HN5-670 Bolt, socket (6mm) |
90002-HN5-670 |
from US $3.32 |
||
|
7
|
7
90201-KSV-J10 NutFLANGE, 18MM |
90201-KSV-J10 |
US $8.32 |
||
|
8
|
8
90501-MG5-670 Washer, plain (18mm) |
90501-MG5-670 |
US $11.71 |
||
|
9
|
9
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
10
|
10
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
11
|
11
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
12
|
12
96001-0603200 Bolt, flange, 6x32 |
96001-0603200 |
from US $0.74 |
