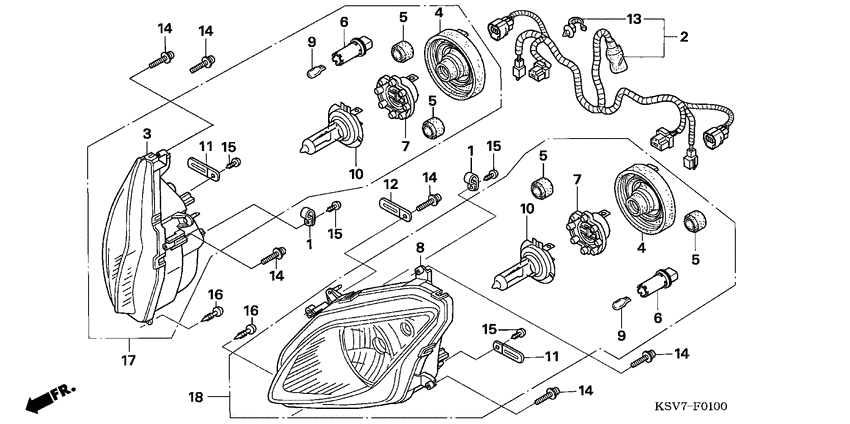

Headlight Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30564-ZE8-003 Clamper, high tension cord |
30564-ZE8-003 |
from US $1.62 |
||
|
2
|
2
32102-KSV-D00
Sub cord
|
32102-KSV-D00 |
— | ||
|
3
|
3
33102-KSV-D01 Headlight unit |
33102-KSV-D01 |
US $374.40 |
||
|
4
|
4
33112-KPB-003 Cover, rubber |
33112-KPB-003 |
from US $8.77 |
||
|
5
|
5
33113-MBW-D21 Pipe, cp |
33113-MBW-D21 |
from US $2.72 |
||
|
6
|
6
33114-MBW-D21 Socket |
33114-MBW-D21 |
from US $14.81 |
||
|
7
|
7
33130-MAT-611 Socket, headlight |
33130-MAT-611 |
from US $8.62 |
||
|
8
|
8
33152-KSV-D01 Headlight unit |
33152-KSV-D01 |
US $374.40 |
||
|
9
|
9
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
10
|
10
34901-MAT-611 Bulb (12v 55w) (h7) |
34901-MAT-611 |
from US $22.71 |
||
|
11
|
11
90105-KSV-J01 Clip2X50 |
90105-KSV-J01 |
US $2.81 |
||
|
12
|
12
91406-657-671 ClipWIRE HARNESS |
91406-657-671 |
from US $3.70 |
||
|
13
|
13
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
14
|
14
93891-050-200-8 Screw-washer5X20 |
93891-050-200-8 |
from US $0.44 |
||
|
15
|
15
93903-34380 ScrewTAPPING, 4X12 |
93903-34380 |
from US $0.41 |
||
|
16
|
16
93903-35380 ScrewTAPPING, 5X16 |
93903-35380 |
from US $0.37 |
||
|
17
|
17
33100-KSV-D01 Headlight assyR. |
33100-KSV-D01 |
US $420.99 |
||
|
18
|
18
33150-KSV-D01 Headlight assyL. |
33150-KSV-D01 |
US $420.99 |
