	Description	OEM Part #	Price
1	1 43155-KSV-J40 Clamper comp. a RR. BRAKE HOSE	43155-KSV-J40	US $6.94
2	2 43157-KSV-J00 Guide RR. BRAKE PIPE	43157-KSV-J00	US $4.77
3	3 43313-KSV-J40 Pipe comp. b RR. BRAKE	43313-KSV-J40	US $13.52
4	4 43315-KSV-J01 Hose comp. b RR. BRAKE	43315-KSV-J01	US $71.81
5	5 43316-KSV-J40 Pipe comp. d RR. BRAKE	43316-KSV-J40	US $43.66
6	6 43317-KSV-J01 Hose comp. c RR. BRAKE	43317-KSV-J01	US $56.60
7	7 43318-KSV-J01 Pipe comp. e RR. BRAKE	43318-KSV-J01	US $17.60
8	8 43319-KSV-J01 Hose comp. d RR. BRAKE	43319-KSV-J01	US $55.62
9	9 46300-KSV-J41 Valve assy.	46300-KSV-J41	—
10	10 52115-KSV-J00 Clamper BRAKE HOSE	52115-KSV-J00	US $8.78
11	11 57101-SDA-003 Rubber MOUNT	57101-SDA-003	from US $3.08
12	12 57103-SDA-003 Collar	57103-SDA-003	from US $1.89
13	13 57110-KSV-J42 Modulator assy - 5K000207	57110-KSV-J42	US $1,408.01
13	13 57110-KSV-J43 Modulator assy 5K000208 -	57110-KSV-J43	US $1,412.24
14	14 90145-MS9-612 Bolt, oil (10x22)	90145-MS9-612	from US $6.96
15	15 90545-300-000 Washer	90545-300-000	from US $3.18
16	16 90651-KSV-J00 Clamp BRAKE PIPE	90651-KSV-J00	US $3.09
17	17 93404-0602500 Bolt-washer, 6x25	93404-0602500	from US $0.62
18	18 94050-08080 NUT, FLANGE, 8MM	94050-08080	from US $0.52
19	19 95701-060-160-7 Bolt FLANGE, 6X16	95701-060-160-7	from US $0.58
20	20 95701-060-250-8 Bolt FLANGE, 6X25	95701-060-250-8	from US $0.59
21	21 95701-060-300-8 Bolt FLANGE, 6X30	95701-060-300-8	from US $0.74

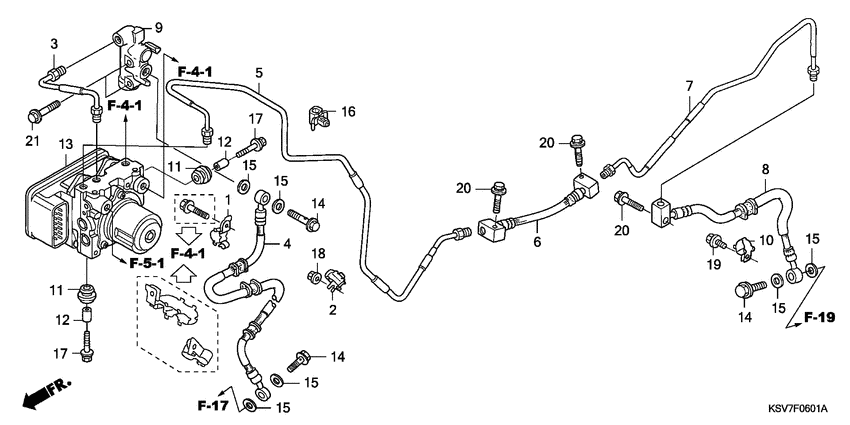

Rear brake pipe (NSS250EX) Diagram Honda NSS250 Forza EX Europe 11087691-714204
