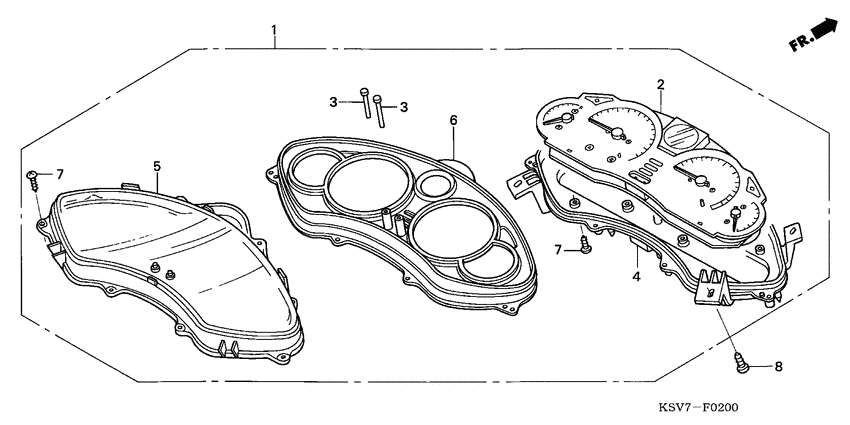

Speedometer Diagram Honda NSS250 Forza EX
- Year
- 2005
- Model code
- NSS250EX5
- Sales region
- Europe
- Frame
- JH2MF08B*5K000001 - JH2MF08B*5K999999
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37100-KSV-D11 Meter assyCOMBINATION (KPH) |
37100-KSV-D11 |
US $891.26 |
||
|
2
|
2
37110-KSV-D11 Meter compCOMBINATION |
37110-KSV-D11 |
US $813.84 |
||
|
3
|
3
37202-KSV-J20 RodSWITCH EXTENSION |
37202-KSV-J20 |
from US $9.18 |
||
|
4
|
4
37211-KSV-J20 CaseLOWER |
37211-KSV-J20 |
from US $54.54 |
||
|
5
|
5
37212-KSV-J21 Lens assy |
37212-KSV-J21 |
US $53.41 |
||
|
6
|
6
37213-KSV-J31 Plate assy.REFLECTING |
37213-KSV-J31 |
US $53.99 |
||
|
7
|
7
93903-22420 ScrewTAPPING, 3X16 |
93903-22420 |
from US $0.37 |
||
|
8
|
8
93903-25310 ScrewTAPPING, 5X16 |
93903-25310 |
from US $0.37 |
