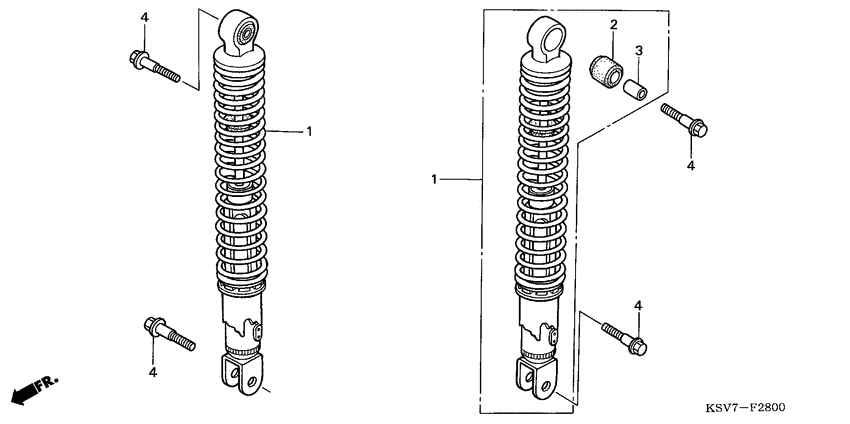

Rear cushion Diagram Honda NSS250 Forza EX
- Year
- 2007
- Model code
- NSS250EX7
- Sales region
- Europe
- Frame
- JH2MF08B*7K100001 - JH2MF08B*7K999999
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-KSV-D01 Cushion assy |
52400-KSV-D01 |
US $210.60 |
||
|
2
|
2
52485-088-901 Bush, rr. |
52485-088-901 |
from US $4.29 |
||
| replacement | |||||
|
2
|
2
52485-KR3-003 Bush, rr. shock |
52485-KR3-003 |
from US $6.36 |
||
|
3
|
3
52486-GA7-003 Collar, rubber bush |
52486-GA7-003 |
from US $2.57 |
||
|
4
|
4
95801-100-400-7 Bolt, flange (10x40) |
95801-100-400-7 |
US $2.57 |
||
