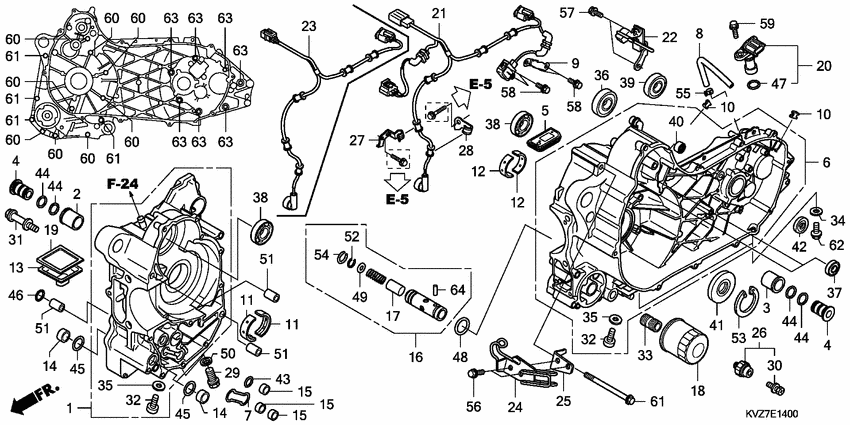

Crankcase Diagram Honda NSS250 Forza
- Year
- 2008
- Model code
- NSS250S8
- Sales region
- Europe
- Frame
- JH2MF10A*8K000001 - JH2MF10A*8K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11100-KVZ-630 Crankcase comp.R. |
11100-KVZ-630 |
US $281.60 |
||
|
2
|
2
11103-KSV-J30 BushR. OUTER ENGINE HANGER |
11103-KSV-J30 |
US $8.44 |
||
|
3
|
3
11104-KSV-J30 BushL. OUTER ENGINE HANGER |
11104-KSV-J30 |
US $8.44 |
||
|
4
|
4
11105-KSV-J30 BushINNER ENGINE HANGER |
11105-KSV-J30 |
US $12.58 |
||
|
5
|
5
11110-KTW-901 Valve comp.REED |
11110-KTW-901 |
from US $18.09 |
||
|
6
|
6
11200-KVZ-000 Crankcase comp.L. |
11200-KVZ-000 |
US $513.92 |
||
|
7
|
7
11205-KTW-900 GasketOIL PATH |
11205-KTW-900 |
from US $3.26 |
||
|
8
|
8
11211-KVZ-630
Tube
|
11211-KVZ-630 |
— | ||
|
10
|
10
11241-KSV-J20 GrommetL. CASE |
11241-KSV-J20 |
US $2.86 |
||
|
11
|
11
13312-KTW-901 BEARING ACRANKSHAFT R. SIDE (BLUE) |
13312-KTW-901 |
from US $10.21 |
||
|
11
|
11
13313-KTW-901 Bearing bCRANKSHAFT R. SIDE (BLACK) |
13313-KTW-901 |
from US $10.21 |
||
|
11
|
11
13314-KTW-901 Bearing cCRANKSHAFT R. SIDE (BROWN) |
13314-KTW-901 |
from US $10.21 |
||
|
11
|
11
13315-KTW-901 Bearing dCRANKSHAFT R. SIDE (GREEN) |
13315-KTW-901 |
from US $10.21 |
||
|
11
|
11
13316-KTW-901 Bearing fCRANKSHAFT R. SIDE (BLUE/BLUE) (O.S.) |
13316-KTW-901 |
from US $10.21 |
||
|
11
|
11
13317-KTW-901 Bearing fCRANKSHAFT R. SIDE (BLACK/BLACK) (O.S.) |
13317-KTW-901 |
from US $10.21 |
||
|
11
|
11
13318-KTW-901 Bearing gCRANKSHAFT R. SIDE (BROWN/BROWN) (O.S.) |
13318-KTW-901 |
from US $10.21 |
||
|
11
|
11
13319-KTW-901 Bearing hCRANKSHAFT R. SIDE (GREEN/GREEN) (O.S.) |
13319-KTW-901 |
from US $10.21 |
||
|
12
|
12
13322-KTW-901 BEARING ACRANKSHAFT L. SIDE (BLUE) |
13322-KTW-901 |
from US $10.21 |
||
|
12
|
12
13323-KTW-901 Bearing bCRANKSHAFT L. SIDE (BLACK) |
13323-KTW-901 |
from US $10.21 |
||
|
12
|
12
13324-KTW-901 Bearing cCRANKSHAFT L. SIDE (BROWN) |
13324-KTW-901 |
from US $10.21 |
||
|
12
|
12
13325-KTW-901 Bearing dCRANKSHAFT L. SIDE (GREEN) |
13325-KTW-901 |
from US $10.21 |
||
|
12
|
12
13326-KTW-901 Bearing eCRANKSHAFT L. SIDE (BLUE/BLUE) (O.S.) |
13326-KTW-901 |
from US $10.21 |
||
|
12
|
12
13327-KTW-901 Bearing fCRANKSHAFT L. SIDE (BLACK/BLACK) (O.S.) |
13327-KTW-901 |
from US $10.21 |
||
|
12
|
12
13328-KTW-901 Bearing gCRANKSHAFT L. SIDE (BROWN/BROWN) (O.S.) |
13328-KTW-901 |
from US $10.21 |
||
|
12
|
12
13329-KTW-901 Bearing hCRANKSHAFT L. SIDE (GREEN/GREEN) (O.S.) |
13329-KTW-901 |
from US $10.21 |
||
|
13
|
13
15153-HN7-000 Strainer, oil |
15153-HN7-000 |
from US $5.51 |
||
|
14
|
14
15155-HP0-A00 Collar, o-ring |
15155-HP0-A00 |
from US $2.87 |
||
|
15
|
15
15155-300-000 Collar, o-ring |
15155-300-000 |
from US $3.11 |
||
|
16
|
16
15220-KTW-900 Valve assy.RELIEF |
15220-KTW-900 |
from US $22.58 |
||
|
17
|
17
15231-413-020 ValveRELIEF |
15231-413-020 |
from US $14.21 |
||
|
18
|
18
15410-MFJ-D01
Cartridge, oil filter (toyo roki)
|
15410-MFJ-D01 |
— | ||
| replacement | |||||
|
18
|
18
15410-MFJ-D02 Cartridge, oil filter |
15410-MFJ-D02 |
from US $19.02 |
||
|
19
|
19
15421-HC4-005 Screen, oil filter |
15421-HC4-005 |
from US $10.80 |
||
|
20
|
20
28810-PPW-013 Pick up assy.TOYO |
28810-PPW-013 |
US $45.49 |
||
|
22
|
22
31307-KVZ-000 Holder compCOUPLER |
31307-KVZ-000 |
US $14.64 |
||
|
23
|
23
32105-KVZ-000
Sub cord
|
32105-KVZ-000 |
— | ||
|
24
|
24
32121-KVZ-630 GuideBATTERY EARTH CABLE |
32121-KVZ-630 |
US $22.40 |
||
|
25
|
25
32122-KVZ-630 BaseCABLE GUIDE |
32122-KVZ-630 |
US $4.77 |
||
|
26
|
26
37240-P13-013 Switch assyOIL PRESSURE (DENSO) |
37240-P13-013 |
from US $19.86 |
||
|
27
|
27
38515-KTW-900 GuideOIL PRESSURE SWITCH CORD |
38515-KTW-900 |
from US $4.62 |
||
|
28
|
28
38516-KVZ-630 Guide bOIL PRESSURE SWITCH CORD |
38516-KVZ-630 |
US $3.78 |
||
|
29
|
29
90002-KTW-900 BoltDRAIN PLUG, 12MM |
90002-KTW-900 |
from US $3.26 |
||
|
30
|
30
90002-PA6-003 Bolt-washer4X8 (DENSO) |
90002-PA6-003 |
from US $1.68 |
||
|
31
|
31
90005-KTW-900 BoltHOOK SPRING |
90005-KTW-900 |
US $4.16 |
||
|
32
|
32
90010-MAY-000 Bolt, socket (8mm) |
90010-MAY-000 |
from US $2.89 |
||
|
33
|
33
90019-MB0-000 Boss, oil filter |
90019-MB0-000 |
from US $7.98 |
||
|
34
|
34
90474-333-000 Washer, sealing, 8mm |
90474-333-000 |
from US $1.12 |
||
|
35
|
35
90475-703-000 Washer c (8mm) |
90475-703-000 |
from US $0.78 |
||
|
36
|
36
91005-KPB-003 Bearing (6205spl) |
91005-KPB-003 |
from US $12.43 |
||
|
38
|
38
91007-KTW-901 BearingRADIAL BALL, 6302 |
91007-KTW-901 |
US $10.06 |
||
|
39
|
39
91102-GE1-711 Bearing (6204) |
91102-GE1-711 |
from US $11.99 |
||
|
40
|
40
91105-KTW-901 BearingNEEDLE, 14X22X20 |
91105-KTW-901 |
from US $18.09 |
||
|
41
|
41
91201-KTW-901 Oil seal33X64X7 |
91201-KTW-901 |
US $10.51 |
||
|
42
|
42
91251-KPB-003 Oil seal (25x35x5) |
91251-KPB-003 |
from US $7.62 |
||
|
43
|
43
91303-KF0-003 O-ring, 14.8x2.4 (arai) |
91303-KF0-003 |
from US $2.01 |
||
| replacement | |||||
|
43
|
43
91356-MA6-005 O-ring (14.8x2.4) |
91356-MA6-005 |
from US $2.06 |
||
|
44
|
44
91304-MJ0-003 O-ring, 15.8x2.4 (showa) |
91304-MJ0-003 |
from US $1.44 |
||
| replacement | |||||
|
44
|
44
91303-800-000 O-ring, 16mm |
91303-800-000 |
from US $2.12 |
||
|
45
|
45
91305-KK4-003 O-ring, 16.5x2.5 (arai) |
91305-KK4-003 |
US $2.29 |
||
|
46
|
46
91307-PY3-000 O-ring9.8X2.4 |
91307-PY3-000 |
from US $1.12 |
||
|
47
|
47
91309-PX4-003 O-ring16X2.1 (NOK) |
91309-PX4-003 |
from US $1.48 |
||
|
48
|
48
91313-MB0-003 O-ring (14.7x2.2) |
91313-MB0-003 |
US $2.22 |
||
| replacement | |||||
|
48
|
48
91313-MG7-004 O-ring (14.8x2.2) |
91313-MG7-004 |
from US $4.29 |
||
|
49
|
49
94101-05800 WasherPLAIN, 5MM |
94101-05800 |
from US $0.37 |
||
|
50
|
50
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.36 |
||
|
51
|
51
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.14 |
||
|
52
|
52
94520-12000 Circlip, internal, 12mm |
94520-12000 |
from US $0.44 |
||
|
53
|
53
9452065000 Circlip (65mm) |
9452065000 |
from US $1.85 |
||
|
54
|
54
94601-16000 Clip, piston pin, 16mm |
94601-16000 |
from US $0.44 |
||
|
55
|
55
95002-410-000-8 ClampTUBE (D10) |
95002-410-000-8 |
from US $0.74 |
||
|
56
|
56
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
57
|
57
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
59
|
59
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.58 |
||
|
60
|
60
95701-060-550-0 BoltFLANGE, 6X55 |
95701-060-550-0 |
from US $0.74 |
||
|
61
|
61
95701-0608000 Bolt, flange (6x80) |
95701-0608000 |
from US $0.86 |
||
|
62
|
62
95701-0801200 Bolt, flange, 8x12 |
95701-0801200 |
from US $0.62 |
||
|
63
|
63
95701-0806000 Bolt, flange, 8x60 |
95701-0806000 |
from US $0.81 |
||
|
64
|
64
9622030178 Roller (3x17.8) |
9622030178 |
from US $0.22 |
||
