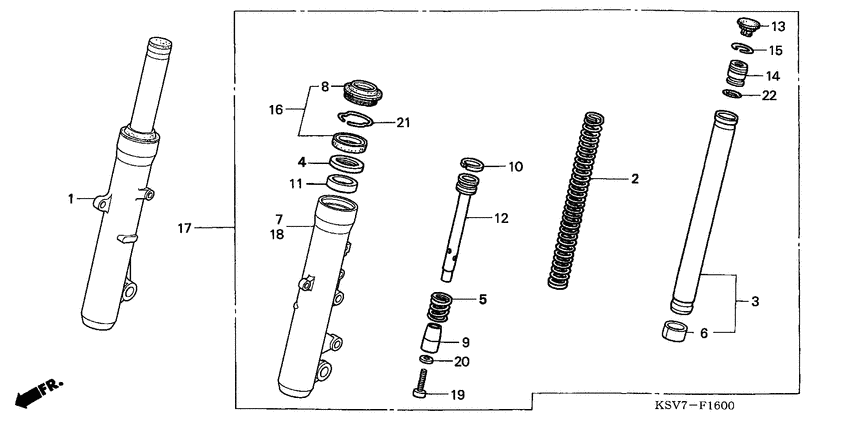

Front fork Diagram Honda NSS250 Forza X
- Year
- 2007
- Model code
- NSS250X7
- Sales region
- Europe
- Frame
- JH2MF08A*7K100001 - JH2MF08A*7K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-KSV-J01 Fork assyR. FR. |
51400-KSV-J01 |
US $390.32 |
||
|
2
|
2
51401-KSV-J01 SpringFR. FORK |
51401-KSV-J01 |
US $42.49 |
||
|
3
|
3
51410-KSV-J01 Pipe compFR. FORK |
51410-KSV-J01 |
US $152.32 |
||
|
4
|
4
51412-GC4-731 Ring, back-up |
51412-GC4-731 |
from US $5.03 |
||
|
5
|
5
51412-340-000 Spring, fr |
51412-340-000 |
from US $4.14 |
||
|
6
|
6
51415-KSV-J01 BushSLIDER |
51415-KSV-J01 |
US $10.26 |
||
|
7
|
7
51420-KSV-J01 CaseR. FR. BOTTOM |
51420-KSV-J01 |
US $187.68 |
||
|
8
|
8
51425-KL8-901 Dust seal |
51425-KL8-901 |
from US $12.88 |
||
|
9
|
9
51432-KPB-003 Piece, oil lock |
51432-KPB-003 |
from US $12.18 |
||
|
10
|
10
51437-KFG-003 Ring, piston |
51437-KFG-003 |
from US $5.18 |
||
|
11
|
11
51437-KSV-J01 BushGUIDE |
51437-KSV-J01 |
US $8.47 |
||
|
12
|
12
51440-KSV-J01 PipeSEAT |
51440-KSV-J01 |
US $29.57 |
||
|
13
|
13
51449-KFG-003 Cap, fork pipe |
51449-KFG-003 |
from US $4.29 |
||
|
14
|
14
51454-KFG-003 Seat, spring (upper) |
51454-KFG-003 |
from US $9.92 |
||
|
15
|
15
51456-KFG-003 Ring (29.8x1.2) |
51456-KFG-003 |
from US $2.15 |
||
|
16
|
16
51490-KL8-900 Seal set, fr. fork |
51490-KL8-900 |
from US $19.45 |
||
|
17
|
17
51500-KSV-J01 Fork assyL. FR. |
51500-KSV-J01 |
US $390.32 |
||
|
18
|
18
51520-KSV-J01 CaseL. FR. BOTTOM |
51520-KSV-J01 |
US $208.40 |
||
|
19
|
19
90116-383-721 Bolt, socket (8mm) |
90116-383-721 |
from US $3.85 |
||
|
20
|
20
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
21
|
21
90601-369-000 Ring |
90601-369-000 |
from US $3.03 |
||
|
22
|
22
91356-KFG-003 O-ring (23.3x2.4) |
91356-KFG-003 |
from US $2.29 |
