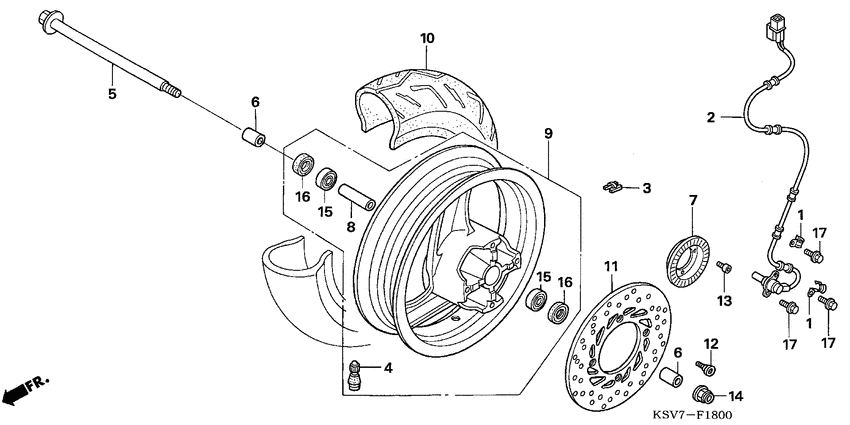

Front wheel Diagram Honda NSS250 Forza X
- Year
- 2007
- Model code
- NSS250X7
- Sales region
- Europe
- Frame
- JH2MF08A*7K100001 - JH2MF08A*7K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
3
|
3
42704-MER-D00 Weight (10g) |
42704-MER-D00 |
from US $9.03 |
||
|
3
|
3
42705-MER-D00 Weight (20g) |
42705-MER-D00 |
from US $9.03 |
||
|
3
|
3
42706-MER-D00 Weight (30g) |
42706-MER-D00 |
from US $9.03 |
||
|
4
|
4
42753-ML7-003 Valve, rim |
42753-ML7-003 |
from US $7.84 |
||
|
5
|
5
44301-KSV-D00 AxleFR. WHEEL |
44301-KSV-D00 |
US $38.35 |
||
|
6
|
6
44311-KSV-D00 CollarFR. WHEEL SIDE |
44311-KSV-D00 |
US $13.76 |
||
|
8
|
8
44620-KEA-000 Collar comp,fr ax |
44620-KEA-000 |
US $12.28 |
||
|
9
|
9
44650-KSV-D00ZA
Wheel sub assy.
|
44650-KSV-D00ZA |
— | ||
|
10
|
10
44711-KPB-023
Tire
|
44711-KPB-023 |
— | ||
|
11
|
11
45351-KFG-003 Disk, l. fr. brake |
45351-KFG-003 |
from US $202.64 |
||
|
12
|
12
90105-MBB-000 Bolt (8x24) |
90105-MBB-000 |
from US $4.44 |
||
| replacement | |||||
|
12
|
12
90105-MV9-003 Bolt, disk (8x24) |
90105-MV9-003 |
from US $3.85 |
||
|
14
|
14
90305-MFC-641 NutU, FLANGE, 14MM |
90305-MFC-641 |
US $4 |
||
|
15
|
15
91051-KSV-J01 BearingRADIAL BALL, 6302 (U) (NSK) |
91051-KSV-J01 |
US $11.25 |
||
|
16
|
16
91257-230-003 Oil seal (28x42x7) |
91257-230-003 |
from US $8.29 |
||
