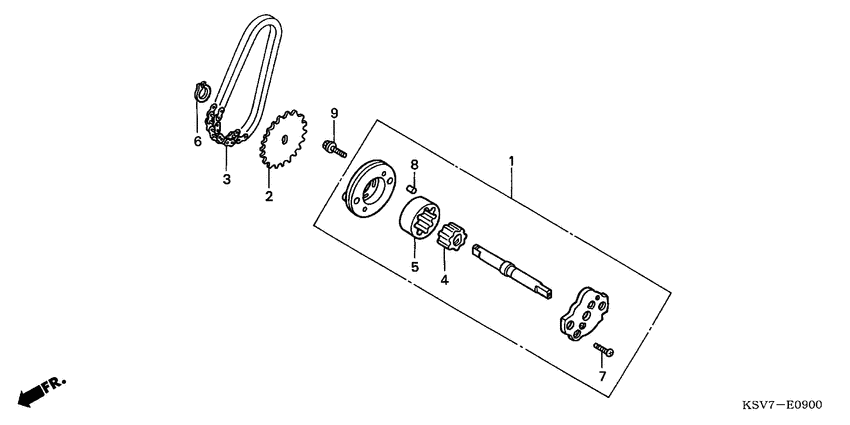

Oil pump Diagram Honda NSS250 Forza X
- Year
- 2007
- Model code
- NSS250X7
- Sales region
- Europe
- Frame
- JH2MF08A*7K100001 - JH2MF08A*7K999999
- Engine Capacity
- 250
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15100-KAB-000
Pump assy., oil
|
15100-KAB-000 |
— | ||
|
2
|
2
15133-KSV-J10
Sprocket
|
15133-KSV-J10 |
— | ||
|
3
|
3
15141-KSV-J11 ChainOIL PUMP (54L) |
15141-KSV-J11 |
US $13.87 |
||
|
4
|
4
15331-KAB-000 Rotor, oil pump |
15331-KAB-000 |
from US $22.07 |
||
|
5
|
5
15332-921-003
Rotor, oil pump outer (yamada)
|
15332-921-003 |
— | ||
|
6
|
6
90604-HA0-000 Circlip (8mm) |
90604-HA0-000 |
from US $1.78 |
||
|
7
|
7
93500-030-121-A ScrewPAN, 3X12 |
93500-030-121-A |
from US $0.37 |
||
| replacement | |||||
|
7
|
7
93500-030120A Screw, pan, 3x12 |
93500-030120A |
from US $0.36 |
||
|
8
|
8
94303-04065 Pin cDOWEL, 4X6.5 |
94303-04065 |
from US $0.81 |
||
|
9
|
9
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
||
