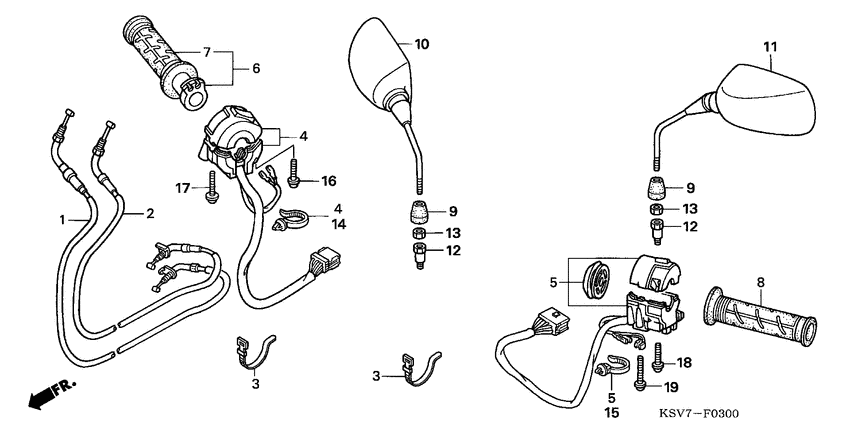

Switch/cable/mirror (NSS250X) Diagram Honda NSS250 Forza X
- Year
- 2007
- Model code
- NSS250X7
- Sales region
- Europe
- Frame
- JH2MF08A*7K100001 - JH2MF08A*7K999999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-KSV-J01 Cable comp. aTHROTTLE |
17910-KSV-J01 |
US $41.41 |
||
|
2
|
2
17920-KSV-J01 Cable comp. bTHROTTLE |
17920-KSV-J01 |
US $31.01 |
||
|
3
|
3
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
4
|
4
35130-KSV-D01
Switch assy
|
35130-KSV-D01 |
— | ||
|
5
|
5
35200-KSV-D01
Switch assy
|
35200-KSV-D01 |
— | ||
|
6
|
6
53140-KPB-000 Grip, throttle |
53140-KPB-000 |
from US $39.51 |
||
|
7
|
7
53165-MY9-890 Grip, r. handle |
53165-MY9-890 |
from US $13.05 |
||
|
8
|
8
53166-MY9-890 Grip, Lh. handle |
53166-MY9-890 |
from US $20.67 |
||
| replacement | |||||
|
8
|
8
53166-MGF-305 Grip, l. handle |
53166-MGF-305 |
US $18.41 |
||
|
9
|
9
88130-MB6-620 Cover, lock nut |
88130-MB6-620 |
from US $4.43 |
||
|
10
|
10
88210-KSV-D01 Mirror compR. |
88210-KSV-D01 |
US $28.97 |
||
|
11
|
11
88220-KSV-D01 Mirror compL. |
88220-KSV-D01 |
US $28.97 |
||
|
12
|
12
90003-MW3-620 Bolt, adapter (10mm) |
90003-MW3-620 |
from US $9.32 |
||
|
13
|
13
90201-MW3-620 Nut, hex. (10mm) |
90201-MW3-620 |
from US $5.16 |
||
|
14
|
14
91540-S30-003 ClipHARNESS BAND(NATURAL) (151.5MM) |
91540-S30-003 |
from US $2.59 |
||
|
15
|
15
91541-S0A-003 ClipHARNESS BAND(BLACK) (145MM) |
91541-S0A-003 |
from US $2.18 |
||
|
16
|
16
93892-0502007 Screw-washer (5x20) |
93892-0502007 |
from US $0.44 |
||
|
17
|
17
93892-0502507 Screw-washer (5x25) |
93892-0502507 |
from US $0.52 |
||
|
18
|
18
93892-0503507 Screw-washer (5x35) |
93892-0503507 |
from US $0.52 |
||
|
19
|
19
93892-0504507 Screw-washer (5x45) |
93892-0504507 |
from US $0.67 |
||
