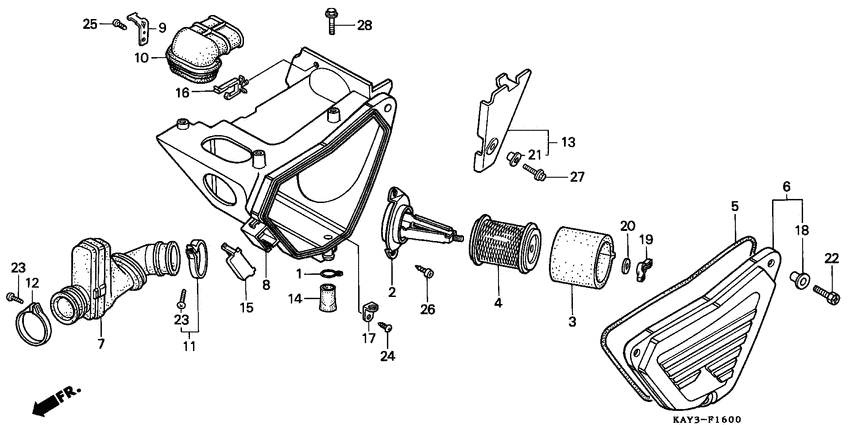

Air cleaner Diagram Honda NX125
- Year
- 1989
- Model code
- NX125K
- Sales region
- France
- Frame
- HIJD120000001 - HIJD120999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
2
|
2
17212-KB9-000
Stay,element set.
|
17212-KB9-000 |
— | ||
|
3
|
3
17213-383-670 Element,cleaner |
17213-383-670 |
from US $12.21 |
||
|
4
|
4
17214-KB9-000
Trap comp.,frame
|
17214-KB9-000 |
— | ||
|
5
|
5
17219-KB9-000 Seal,air/c cover |
17219-KB9-000 |
US $6.77 |
||
| replacement | |||||
|
5
|
5
17222-MN4-405 Seal |
17222-MN4-405 |
from US $6.51 |
||
|
6
|
6
17220-KB9-000
Cover,air/c case
|
17220-KB9-000 |
— | ||
|
7
|
7
17222-KG1-000
Tube,air/c conn
|
17222-KG1-000 |
— | ||
|
8
|
8
17230-KG1-920
Case,air claner
|
17230-KG1-920 |
— | ||
|
9
|
9
17235-KG1-920
Stay,bat.stopper
|
17235-KG1-920 |
— | ||
|
10
|
10
17240-KB9-620 Duct,air/c.in. |
17240-KB9-620 |
US $25.57 |
||
|
11
|
11
17255-KB9-000 Band b, a/clnr tube |
17255-KB9-000 |
US $5 |
||
| replacement | |||||
|
11
|
11
9501858250 Band, air cleaner connecting tube (58) |
9501858250 |
from US $3.26 |
||
|
12
|
12
17255-323-000 Band a, air cleaner connecting tube |
17255-323-000 |
from US $7.31 |
||
|
13
|
13
17280-KG1-920
Cover,air/c.rear
|
17280-KG1-920 |
— | ||
|
14
|
14
17358-170-000 Tube, drain |
17358-170-000 |
from US $3.11 |
||
|
15
|
15
32605-KG1-920
Cover,coupler box
|
32605-KG1-920 |
— | ||
|
16
|
16
32985-KC1-830 Clip,wire cord |
32985-KC1-830 |
US $6.33 |
||
|
17
|
17
50329-KG1-920
Guide,bat.tube b
|
50329-KG1-920 |
— | ||
|
18
|
18
83601-357-000 Colr, cover setting |
83601-357-000 |
from US $4.44 |
||
|
19
|
19
90325-044-000 Nut, tool box setting |
90325-044-000 |
from US $2.29 |
||
|
20
|
20
90416-551-000
Washer, sealing, 6mm
|
90416-551-000 |
— | ||
|
21
|
21
90513-323-000 Washer (6x9) |
90513-323-000 |
from US $2.34 |
||
|
22
|
22
92300-06016-0A Bolt,slotted 6x16 |
92300-06016-0A |
from US $0.52 |
||
| replacement | |||||
|
22
|
22
92301-06016-0A BoltRECESSED, 6X16 |
92301-06016-0A |
from US $0.52 |
||
|
23
|
23
93500-040-250-A Screw, pan, 4x25 |
93500-040-250-A |
from US $0.37 |
||
|
24
|
24
93903-34220 ScrewTAPPING, 4X10 |
93903-34220 |
from US $0.37 |
||
|
25
|
25
93903-35220 ScrewTAPPING, 5X12 |
93903-35220 |
from US $0.37 |
||
|
26
|
26
93903-36220 ScrewTAPPING, 6X16 |
93903-36220 |
from US $0.44 |
||
|
27
|
27
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
28
|
28
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
