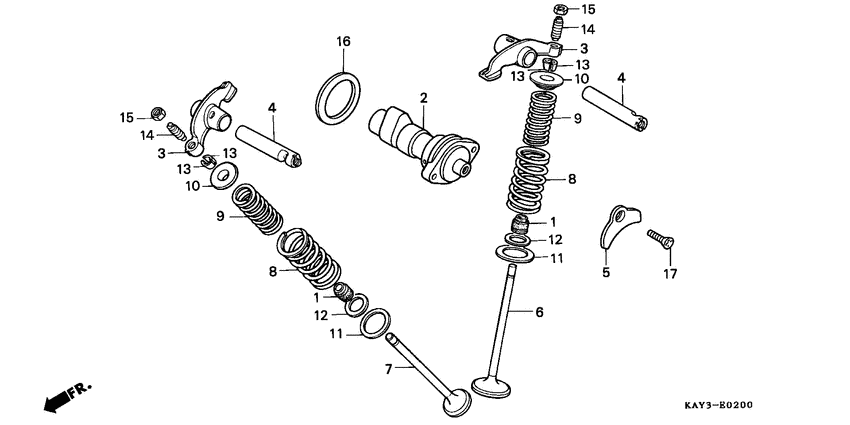

Camshaft/valve Diagram Honda NX125
- Year
- 1989
- Model code
- NX125K
- Sales region
- France
- Frame
- HIJD120000001 - HIJD120999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12208-413-003 Seal, valve stem (arai) |
12208-413-003 |
from US $7.84 |
||
|
2
|
2
14101-KB9-920
Cam shaft
|
14101-KB9-920 |
— | ||
|
3
|
3
14431-383-000 Arm, Valve Rocker |
14431-383-000 |
from US $27.61 |
||
|
4
|
4
14451-383-000 Shaft,rocker arm |
14451-383-000 |
US $26.10 |
||
| replacement | |||||
|
4
|
4
14451-437-000 Shaft |
14451-437-000 |
from US $14.50 |
||
|
5
|
5
14456-KG2-950 Plate |
14456-KG2-950 |
from US $2.96 |
||
|
6
|
6
14711-440-003
Valve,in.
|
14711-440-003 |
— | ||
|
7
|
7
14721-KB1-920
Valve,exhaust
|
14721-KB1-920 |
— | ||
|
8
|
8
14751-383-005 Spring, valve |
14751-383-005 |
from US $9.03 |
||
|
9
|
9
14761-383-005 Spring, valve |
14761-383-005 |
from US $5.77 |
||
|
10
|
10
14771-107-020 Retainer, vlv spr |
14771-107-020 |
from US $5.03 |
||
|
11
|
11
14775-107-000 Seat, valve spring |
14775-107-000 |
from US $3.63 |
||
|
12
|
12
14776-107-010 Seat, valve spring |
14776-107-010 |
from US $2.37 |
||
|
13
|
13
14781-107-003 Cotter, valve (sanko) |
14781-107-003 |
from US $3.18 |
||
|
14
|
14
90012-KK3-830 Screw, tappet adj |
90012-KK3-830 |
from US $3.48 |
||
| replacement | |||||
|
14
|
14
90012-415-000 Screw, tappet adjusting |
90012-415-000 |
from US $3.29 |
||
|
15
|
15
90206-250-000 Nut, tappet adjusting |
90206-250-000 |
from US $1.92 |
||
|
16
|
16
90451-383-000 Washer (34mm) |
90451-383-000 |
from US $5.33 |
||
|
17
|
17
93600-060-200-A ScrewFLAT, 6X20 |
93600-060-200-A |
from US $0.44 |
||
