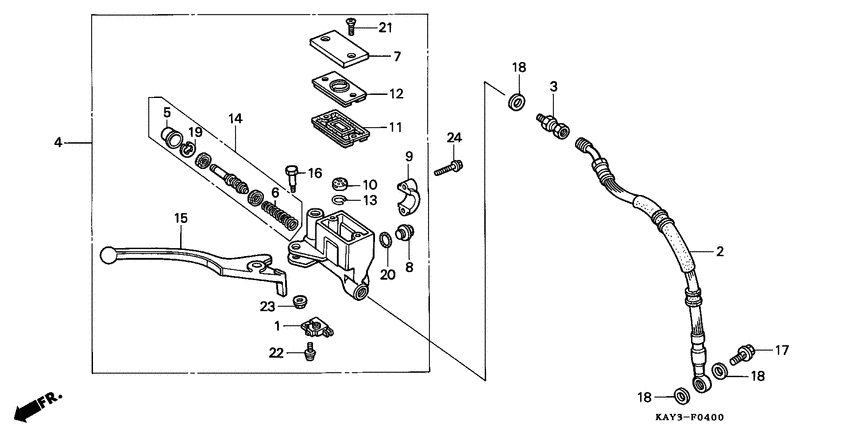

Fr. brake master cylinder Diagram Honda NX125
- Year
- 1989
- Model code
- NX125K
- Sales region
- France
- Frame
- HIJD120000001 - HIJD120999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35340-MA5-671 Switch, fr. stop |
35340-MA5-671 |
from US $14.55 |
||
|
2
|
2
45125-KAY-600
Hose,fr.brake
|
45125-KAY-600 |
— | ||
|
3
|
3
45127-KS3-900
Joint,brake hose
|
45127-KS3-900 |
— | ||
|
4
|
4
45500-KS3-900
Cylinder assy fr.
|
45500-KS3-900 |
— | ||
|
5
|
5
45504-KB9-960 Boot |
45504-KB9-960 |
US $10.95 |
||
|
6
|
6
45506-KB9-960
Spring
|
45506-KB9-960 |
— | ||
|
7
|
7
45513-KR1-760 Cap,master cylind |
45513-KR1-760 |
US $28.72 |
||
|
8
|
8
45515-KB9-960 Gauge comp.,level |
45515-KB9-960 |
US $8.01 |
||
|
9
|
9
45517-KB9-960 Holder,master cyl |
45517-KB9-960 |
US $14.22 |
||
|
10
|
10
45518-KS3-900
Separator comp.
|
45518-KS3-900 |
— | ||
|
11
|
11
45520-KB9-960 Diaphragm |
45520-KB9-960 |
US $11.41 |
||
|
12
|
12
45521-KR1-760 Plate,diaphragm |
45521-KR1-760 |
US $13.66 |
||
|
13
|
13
45523-KS3-900
Ring
|
45523-KS3-900 |
— | ||
|
14
|
14
45530-KS3-900
Cylinder set,mast
|
45530-KS3-900 |
— | ||
|
15
|
15
53175-KB9-960
Lever,r.steering
|
53175-KB9-960 |
— | ||
|
16
|
16
90114-KB9-960
Bolt,handle lever
|
90114-KB9-960 |
— | ||
|
17
|
17
90145-KR1-600 Oil bolt,10x22 |
90145-KR1-600 |
US $10.02 |
||
|
18
|
18
90545-KR1-600
Washer oil bolt
|
90545-KR1-600 |
— | ||
|
19
|
19
90651-KB9-960 Circlip |
90651-KB9-960 |
US $2.79 |
||
|
20
|
20
91305-KB9-961 O ring,13x1.9 |
91305-KB9-961 |
US $2.55 |
||
|
21
|
21
93600-040-121-G
Screw
|
93600-040-121-G |
— | ||
| replacement | |||||
|
21
|
21
93600-040-120-G Screw, flat, 4x12 |
93600-040-120-G |
from US $0.37 |
||
|
22
|
22
93893-040-121-8 Screw-washer4X12 |
93893-040-121-8 |
from US $0.52 |
||
| replacement | |||||
|
22
|
22
93893-040-120-8 Screw-washer4X12 |
93893-040-120-8 |
from US $0.58 |
||
|
23
|
23
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
24
|
24
95701-060-220-7 BoltFLANGE, 6X22 |
95701-060-220-7 |
from US $0.59 |
||
