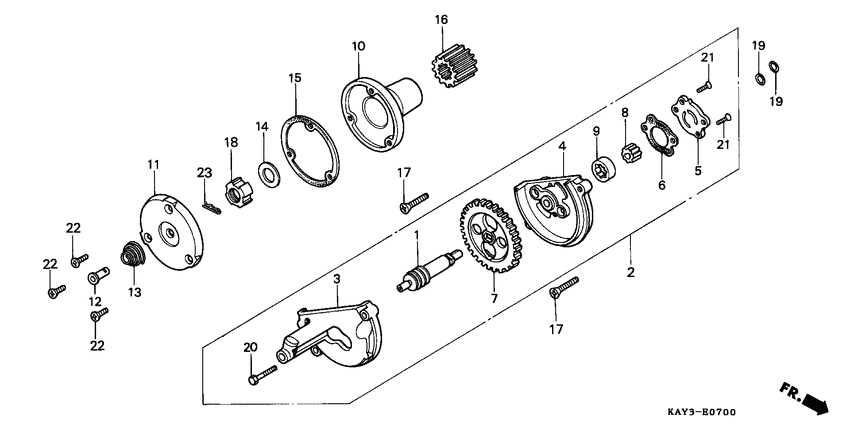

Oil pump Diagram Honda NX125
- Year
- 1989
- Model code
- NX125K
- Sales region
- France
- Frame
- HIJD120000001 - HIJD120999999
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12421-365-000 Gear, tachometer |
12421-365-000 |
US $32.23 |
||
|
2
|
2
15100-440-010 Pump assy.,oil |
15100-440-010 |
US $174.60 |
||
|
3
|
3
15106-324-030 Cov,oil pump gear |
15106-324-030 |
from US $22.82 |
||
|
4
|
4
15111-440-010 Body,oil pump |
15111-440-010 |
US $55.47 |
||
| replacement | |||||
|
4
|
4
15111-KBB-900 Body, oil pump |
15111-KBB-900 |
US $55.47 |
||
|
5
|
5
15116-107-020 Plate, oil pump |
15116-107-020 |
US $11.25 |
||
|
6
|
6
15126-107-020 Gasket, oil pump |
15126-107-020 |
from US $1.78 |
||
|
7
|
7
15131-324-010 Gear,pump drive |
15131-324-010 |
from US $33.09 |
||
|
8
|
8
15331-399-000
Rotor, oil pump inner (yamada)
|
15331-399-000 |
— | ||
|
9
|
9
15332-399-000
Rotor, oil pump outer (yamada)
|
15332-399-000 |
— | ||
|
10
|
10
15430-440-030 Rotor, oil filter |
15430-440-030 |
from US $26.79 |
||
|
11
|
11
15436-107-000 Cap |
15436-107-000 |
from US $16.32 |
||
|
12
|
12
15441-107-000 Through, oil |
15441-107-000 |
US $5.87 |
||
| replacement | |||||
|
12
|
12
15441-KCS-650 Through, oil |
15441-KCS-650 |
from US $5.77 |
||
|
13
|
13
15446-107-000 Spring, oil through |
15446-107-000 |
from US $3.11 |
||
|
14
|
14
15451-107-000 Washer, oil filter rotor locking |
15451-107-000 |
from US $3.70 |
||
|
15
|
15
15459-107-000 Gasket,cap.rotor |
15459-107-000 |
US $3.74 |
||
| replacement | |||||
|
15
|
15
15459-KWK-900 Gskt, oil filter cap |
15459-KWK-900 |
from US $2.59 |
||
|
16
|
16
23121-383-000
Gear,primary driv
|
23121-383-000 |
— | ||
| replacement | |||||
|
16
|
16
23121-KCS-650 Gear (19t) |
23121-KCS-650 |
US $37.18 |
||
|
17
|
17
90101-440-000 Screw, flat (6x30) |
90101-440-000 |
from US $2.15 |
||
|
18
|
18
90231-200-010 Nut, lock, 16mm |
90231-200-010 |
from US $3.64 |
||
| replacement | |||||
|
18
|
18
90231-KCS-651 Nut, lock (16mm) |
90231-KCS-651 |
from US $4.74 |
||
|
19
|
19
91304-107-000 O-ring (9.4x2.4) |
91304-107-000 |
US $3.72 |
||
| replacement | |||||
|
19
|
19
91304-KK3-830 O-ring (9.4x2.4) |
91304-KK3-830 |
from US $2.44 |
||
|
20
|
20
92000-05020-0A Bolt, hex., 5x20 |
92000-05020-0A |
US $1.04 |
||
| replacement | |||||
|
20
|
20
92101-05020-0A Bolt, hex., 5x20 |
92101-05020-0A |
from US $0.38 |
||
|
21
|
21
93600-040121A Screw, flat, 4x12 |
93600-040121A |
from US $0.37 |
||
|
22
|
22
93700-050-120-A Screw, oval (5x12) |
93700-050-120-A |
from US $0.37 |
||
|
23
|
23
94251-08000 PinLOCK, 8MM |
94251-08000 |
from US $0.59 |
||
