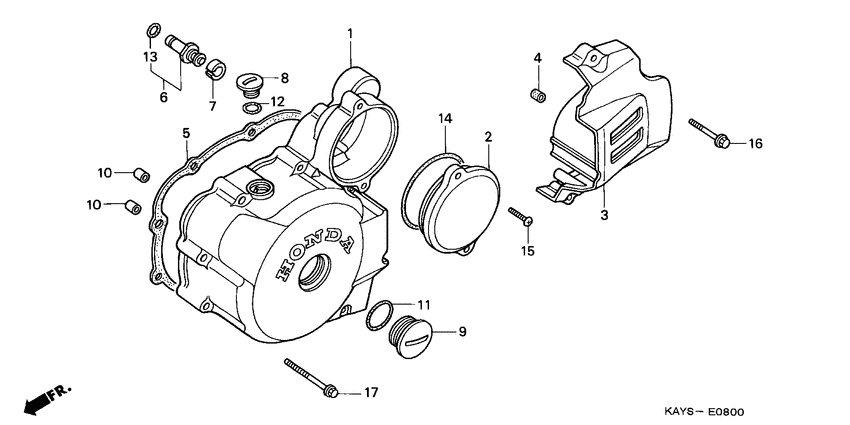

Left Crankcase Cover Diagram Honda NX125
- Year
- 1995
- Model code
- NX125S
- Sales region
- Italy
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-KG1-920
Cover comp.
|
11341-KG1-920 |
— | ||
|
2
|
2
11355-KG1-920
Cover
|
11355-KG1-920 |
— | ||
|
3
|
3
11361-KG1-920
Cover
|
11361-KG1-920 |
— | ||
|
4
|
4
11363-437-620 Rub, rr. cvr setting |
11363-437-620 |
US $3.70 |
||
|
5
|
5
11395-KB1-921
Gasket
|
11395-KB1-921 |
— | ||
|
6
|
6
35750-GS3-003 Contact |
35750-GS3-003 |
from US $5.92 |
||
|
7
|
7
35752-KCT-690 Spacer |
35752-KCT-690 |
from US $2.89 |
||
|
8
|
8
90084-428-000
Cap, alternator
|
90084-428-000 |
— | ||
| replacement | |||||
|
8
|
8
90084-471-000 Cap, alternator |
90084-471-000 |
US $6.81 |
||
|
9
|
9
90087-428-000 Cap (30mm) |
90087-428-000 |
from US $12.88 |
||
|
10
|
10
90703-HC4-000 Dowel pin, 10x14 |
90703-HC4-000 |
from US $1.68 |
||
| replacement | |||||
|
10
|
10
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
11
|
11
91302-567-003 O-ring (27.4x2.4) |
91302-567-003 |
from US $2.66 |
||
|
12
|
12
91303-377-000 O-ring, 13.8x2.5 |
91303-377-000 |
from US $5.49 |
||
|
13
|
13
91312-107-000 O-ring (7x1.7) |
91312-107-000 |
from US $2.37 |
||
|
14
|
14
91359-371-003 O-ring 63x3.0 |
91359-371-003 |
US $9.06 |
||
| replacement | |||||
|
14
|
14
91316-PE7-730 O-ring62.4X3.1 |
91316-PE7-730 |
from US $4.22 |
||
|
15
|
15
93500-060-250-A ScrewPAN, 6X25 |
93500-060-250-A |
from US $0.52 |
||
|
16
|
16
96001-060-200-0 BoltFLANGE, 6X20 |
96001-060-200-0 |
from US $0.59 |
||
|
17
|
17
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
