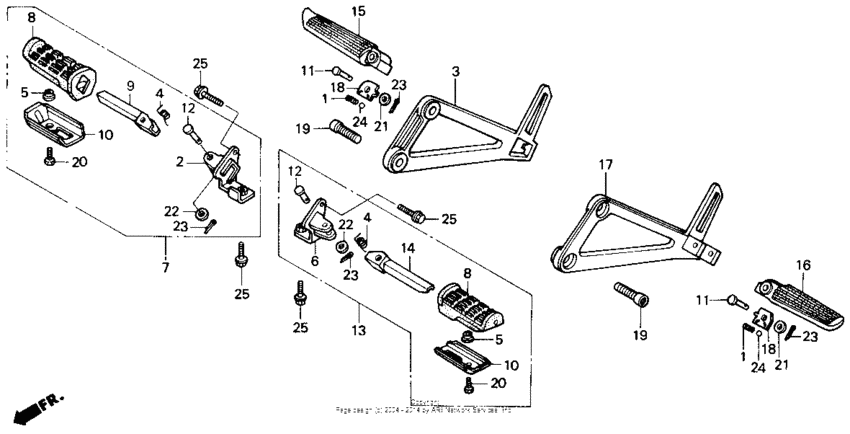

Step Diagram Honda NX250
- Year
- 1988
- Model code
- NX250 A
- Sales region
- USA
- Frame
- JH2MD210*JK000009 - JH2MD210*JK003124
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28333-300-000 Spring |
28333-300-000 |
from US $3.48 |
||
|
2
|
2
50610-KW3-020ZB
Bracket,r*nh146m*
|
50610-KW3-020ZB |
— | ||
|
3
|
3
50612-KW3-000
Brkt r,p step
|
50612-KW3-000 |
— | ||
|
4
|
4
50617-MB2-000
Spg,step return
|
50617-MB2-000 |
— | ||
|
5
|
5
50618-KE8-000 Collar, 6.5x11x3 |
50618-KE8-000 |
from US $1.08 |
||
|
6
|
6
50620-KW3-020ZB
Bracket,l*nh146m*
|
50620-KW3-020ZB |
— | ||
|
7
|
7
50630-KW3-010ZB
Bar assy.*nh146m*
|
50630-KW3-010ZB |
— | ||
|
8
|
8
50632-MB2-000
Rubber,step
|
50632-MB2-000 |
— | ||
|
9
|
9
50635-KS5-000 Bar comp.,r.step |
50635-KS5-000 |
US $18.94 |
||
|
10
|
10
50636-KS5-000
Plate b,step
|
50636-KS5-000 |
— | ||
|
11
|
11
50639-MB2-000 Pin, step bar joint |
50639-MB2-000 |
US $4.24 |
||
|
12
|
12
50639-MJ0-000 Pin.step bar |
50639-MJ0-000 |
from US $4.24 |
||
|
13
|
13
50640-KW3-010ZB
Bar assy.*nh146m*
|
50640-KW3-010ZB |
— | ||
|
14
|
14
50645-KS5-000 Bar comp.,l.step |
50645-KS5-000 |
US $18.94 |
||
|
15
|
15
50660-MM4-000 Arm comp.,r.pilli |
50660-MM4-000 |
from US $58.85 |
||
|
16
|
16
50670-MM4-000
Arm comp.,l.pilli
|
50670-MM4-000 |
— | ||
|
17
|
17
50712-KW3-000 Brkt l,p step |
50712-KW3-000 |
US $114.21 |
||
|
18
|
18
50718-MM4-010
Plate,pillion ste
|
50718-MM4-010 |
— | ||
|
19
|
19
90157-MF5-000 Bolt,socket 8x20 |
90157-MF5-000 |
from US $3.85 |
||
|
20
|
20
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
20
|
20
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
20
|
20
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
21
|
21
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
22
|
22
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
23
|
23
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
24
|
24
96211-08000 Ball |
96211-08000 |
from US $0.22 |
||
|
25
|
25
96300-1002500 Bolt, flange (10x25) |
96300-1002500 |
from US $0.89 |
||
