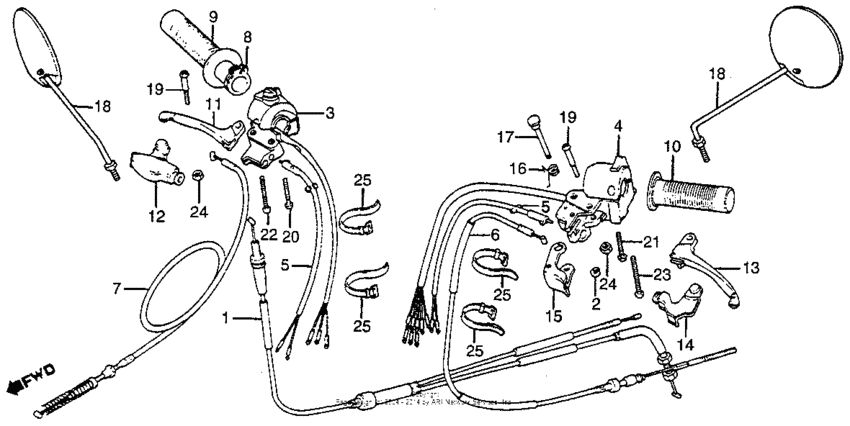

Handlebar + switch + cable Diagram Honda NX50
- Year
- 1982
- Model code
- NX50M A
- Sales region
- USA
- Frame
- JH2AB040*CS100002 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-187-000
Cable,throttle
|
17910-187-000 |
— | ||
|
2
|
2
30158-700-010 E-clip3MM |
30158-700-010 |
from US $1.14 |
||
|
3
|
3
35130-187-671
Switch, starter stop
|
35130-187-671 |
— | ||
|
4
|
4
35200-190-671
Sw,winker,horn
|
35200-190-671 |
— | ||
|
5
|
5
35340-GAN-620 Switch assy.,fr.s |
35340-GAN-620 |
from US $14.42 |
||
|
6
|
6
43450-187-851
Cable, rr. brake
|
43450-187-851 |
— | ||
|
7
|
7
45450-187-672
Cabel,fr.brake
|
45450-187-672 |
— | ||
|
8
|
8
53141-125-771 Pipe, throttle grip |
53141-125-771 |
from US $9.32 |
||
|
9
|
9
53165-147-670
Grip,right handle
|
53165-147-670 |
— | ||
|
10
|
10
53166-187-000
Grip,l.handle
|
53166-187-000 |
— | ||
|
11
|
11
53175-147-671 Lever, r. handle |
53175-147-671 |
US $13.28 |
||
| replacement | |||||
|
11
|
11
53175-GR2-010 Lever, r. handlebar |
53175-GR2-010 |
from US $11.99 |
||
|
12
|
12
53176-170-700 Cover, r |
53176-170-700 |
from US $4.88 |
||
|
13
|
13
53178-GGL-305 Lever, l. handlebar |
53178-GGL-305 |
US $17.83 |
||
|
14
|
14
53179-170-700 Cover, l |
53179-170-700 |
from US $12.50 |
||
|
15
|
15
53181-187-000 Lever, parking |
53181-187-000 |
from US $13.74 |
||
|
16
|
16
53182-155-010 Spring, lever return |
53182-155-010 |
from US $3.18 |
||
|
17
|
17
53183-155-000 Pin |
53183-155-000 |
from US $5.21 |
||
|
18
|
18
88210-GBJ-505 Mirror comp |
88210-GBJ-505 |
US $26.71 |
||
| replacement | |||||
|
18
|
18
88210-GN2-000 Mirror comp |
88210-GN2-000 |
US $35.48 |
||
|
19
|
19
90115-170-700 Screw |
90115-170-700 |
from US $3.11 |
||
|
20
|
20
93500-050-280-A ScrewPAN, 5X28 |
93500-050-280-A |
from US $0.44 |
||
|
21
|
21
93500-050320A Screw, pan, 5x32 |
93500-050320A |
from US $0.44 |
||
|
22
|
22
93500-050350A Screw, pan, 5x35 |
93500-050350A |
from US $0.44 |
||
|
23
|
23
93500-050400A Screw, pan, 5x40 |
93500-050400A |
from US $0.44 |
||
|
24
|
24
94001-050-000-S NutHEX., 5MM |
94001-050-000-S |
from US $0.37 |
||
|
25
|
25
9501462100 Band b1, wire |
9501462100 |
from US $1.18 |
||
