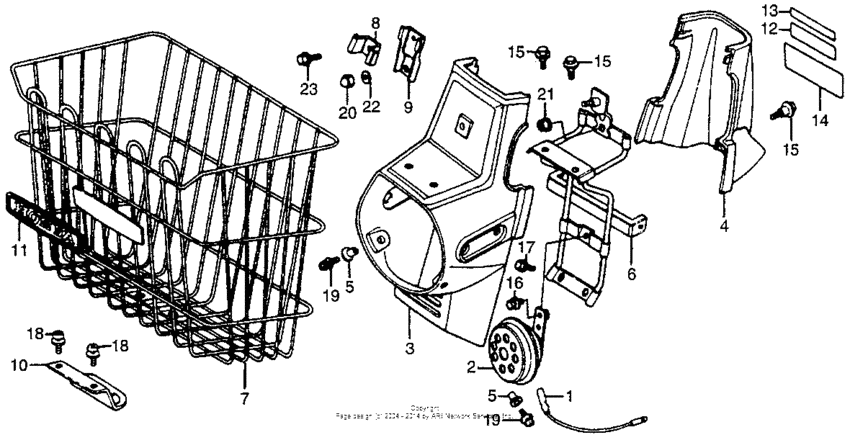

Headlight case + front basket Diagram Honda NX50
- Year
- 1982
- Model code
- NX50M A
- Sales region
- USA
- Frame
- JH2AB040*CS100002 -
- Engine Capacity
- 50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38105-383-000
Sub cord,horn
|
38105-383-000 |
— | ||
|
2
|
2
38110-187-671 Horn comp |
38110-187-671 |
US $31.01 |
||
|
3
|
3
61301-187-670ZA
Case,h/l*pb-31*
|
61301-187-670ZA |
— | ||
|
3
|
3
61301-187-670ZB
Case *r110*
|
61301-187-670ZB |
— | ||
|
4
|
4
61302-187-670ZA
Case,rear *pb-31*
|
61302-187-670ZA |
— | ||
|
4
|
4
61302-187-670ZB
Case,rear *r-110*
|
61302-187-670ZB |
— | ||
|
5
|
5
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
6
|
6
81100-187-670
Carrier, fr.
|
81100-187-670 |
— | ||
|
7
|
7
81311-GB4-810 Basket,fr. |
81311-GB4-810 |
from US $17.95 |
||
|
8
|
8
81312-191-000
Stay,basket set
|
81312-191-000 |
— | ||
|
9
|
9
81313-187-670
Pl,basket,setting
|
81313-187-670 |
— | ||
|
10
|
10
81314-187-670ZB
Stay, fr. *nh111*
|
81314-187-670ZB |
— | ||
|
11
|
11
87509-187-000 Emblem,fr.basket |
87509-187-000 |
US $6.38 |
||
|
12
|
12
87510-147-670ZA Label *nh1* |
87510-147-670ZA |
from US $4.22 |
||
|
13
|
13
87511-147-670ZA
Label,*nh-1*
|
87511-147-670ZA |
— | ||
|
14
|
14
87560-174-770ZA
Mark,caution*nh-1
|
87560-174-770ZA |
— | ||
|
15
|
15
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
16
|
16
93482-060-100-0 Bolt-washer, 6x10 |
93482-060-100-0 |
US $0.52 |
||
|
17
|
17
93402-060-120-0 Bolt-washer6X12 |
93402-060-120-0 |
from US $0.52 |
||
|
18
|
18
93891-060-140-0 Screw-washer,6x14 |
93891-060-140-0 |
US $0.55 |
||
|
19
|
19
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
20
|
20
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
21
|
21
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
22
|
22
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
23
|
23
95701-060-100-0 BoltFLANGE, 6X10 |
95701-060-100-0 |
from US $0.52 |
