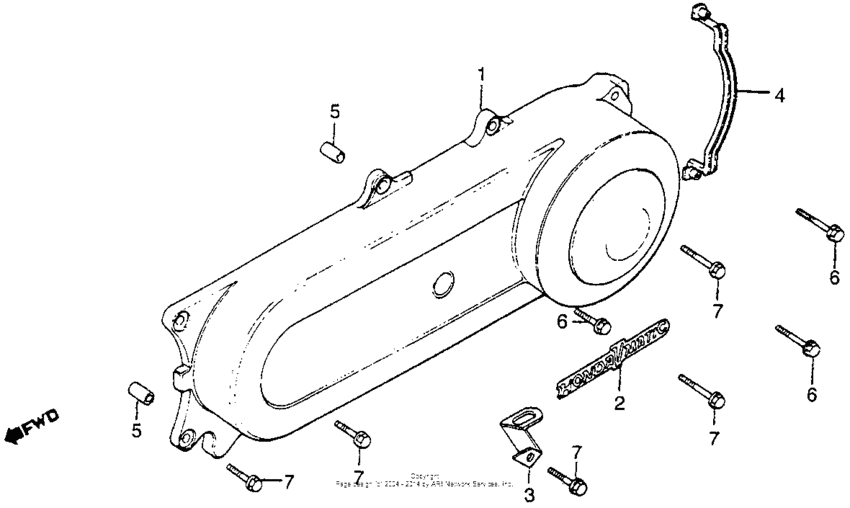

Left side cover Diagram Honda NX50
- Year
- 1982
- Model code
- NX50M A
- Sales region
- USA
- Frame
- JH2AB040*CS100002 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-187-850 Cover, l. side |
11341-187-850 |
US $330.89 |
||
|
2
|
2
11345-187-670
Emb, l. side cover
|
11345-187-670 |
— | ||
|
3
|
3
11346-187-000
Clamp, tube
|
11346-187-000 |
— | ||
|
4
|
4
11352-187-000
Rub, l. cover seal
|
11352-187-000 |
— | ||
|
5
|
5
94301-10140 Pin aDOWEL, 10X14 |
94301-10140 |
from US $1.04 |
||
|
6
|
6
96001-060-400-0 BoltFLANGE, 6X40 |
96001-060-400-0 |
from US $0.74 |
||
|
7
|
7
96001-060-280-0 BoltFLANGE, 6X28 |
96001-060-280-0 |
from US $0.74 |
