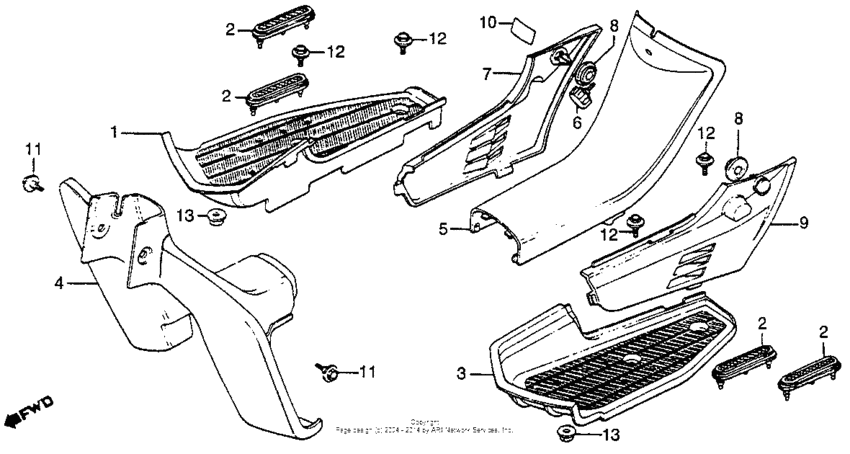

Leg shield + frame cover Diagram Honda NX50
- Year
- 1982
- Model code
- NX50M A
- Sales region
- USA
- Frame
- JH2AB040*CS100002 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50610-187-010ZC
Step, r. *pb31*
|
50610-187-010ZC |
— | ||
|
1
|
1
50610-187-010ZD
Step, r. *r110*
|
50610-187-010ZD |
— | ||
|
2
|
2
50611-187-670 Rubber,step |
50611-187-670 |
US $8.32 |
||
|
3
|
3
50620-187-010ZC
Step, l. *pb31*
|
50620-187-010ZC |
— | ||
|
3
|
3
50620-187-010ZD
Step, l. *r110*
|
50620-187-010ZD |
— | ||
|
4
|
4
64301-187-750ZA
Shield, leg *nh111*
|
64301-187-750ZA |
— | ||
|
5
|
5
64350-187-730ZA
Cover, frame *nh111*
|
64350-187-730ZA |
— | ||
|
6
|
6
64351-187-000 Ratcht,fra cover |
64351-187-000 |
US $5.92 |
||
|
7
|
7
83500-187-000ZJ
Cover, r. si *pb31*
|
83500-187-000ZJ |
— | ||
|
7
|
7
83500-187-000ZK
Cover, r. si *r110*
|
83500-187-000ZK |
— | ||
|
8
|
8
83551-376-000 Grommet, side cover |
83551-376-000 |
from US $4.52 |
||
|
9
|
9
83600-187-000ZJ
Cover, l. si *pb31*
|
83600-187-000ZJ |
— | ||
|
9
|
9
83600-187-000ZK
Cover,side*r-110*
|
83600-187-000ZK |
— | ||
|
10
|
10
87514-187-910
Label,tool set
|
87514-187-910 |
— | ||
|
11
|
11
90111-162-000 BoltFLANGE, 6MM |
90111-162-000 |
from US $3.55 |
||
|
12
|
12
90111-187-000 BoltFLANGE, 6MM |
90111-187-000 |
from US $4 |
||
|
13
|
13
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
