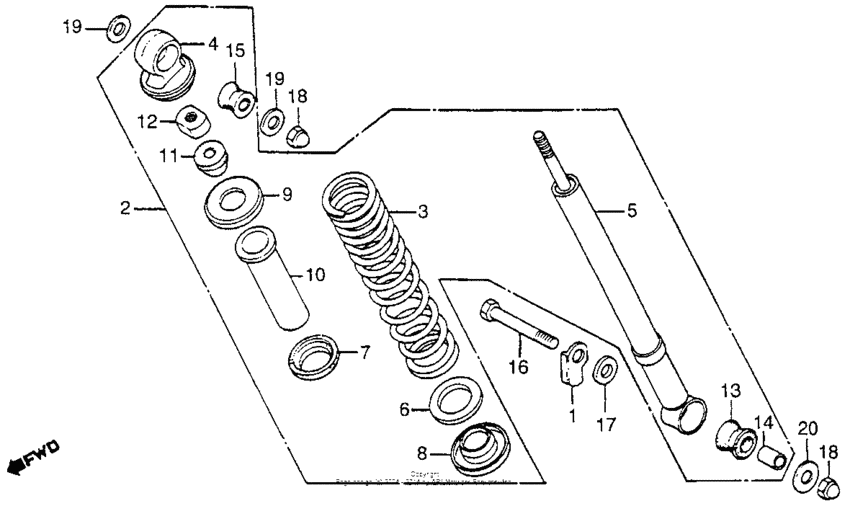

Rear shock absorber Diagram Honda NX50
- Year
- 1982
- Model code
- NX50M A
- Sales region
- USA
- Frame
- JH2AB040*CS100002 -
- Engine Capacity
- 50
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43451-187-000
Stopper, rr.
|
43451-187-000 |
— | ||
|
2
|
2
52400-187-850
Cushion,rr
|
52400-187-850 |
— | ||
|
3
|
3
52401-187-670
Spring, rr. shock
|
52401-187-670 |
— | ||
|
4
|
4
52403-147-000
Joint (upper)
|
52403-147-000 |
— | ||
|
5
|
5
52410-187-003
Damper comp.,rr.
|
52410-187-003 |
— | ||
|
6
|
6
52456-147-000
Seat, rubber (lower)
|
52456-147-000 |
— | ||
|
7
|
7
52457-147-000
Seat, rubber (upper)
|
52457-147-000 |
— | ||
|
8
|
8
52458-147-000
Seat, spring (lower)
|
52458-147-000 |
— | ||
|
9
|
9
52459-147-000
Seat, spring (upper)
|
52459-147-000 |
— | ||
|
10
|
10
52462-147-000
Guide, rr. (lower)
|
52462-147-000 |
— | ||
|
11
|
11
52475-187-000
Rub,rr.cush.stpr.
|
52475-187-000 |
— | ||
|
12
|
12
52481-001-030
Nut, rr. (upper)
|
52481-001-030 |
— | ||
|
13
|
13
52485-KR3-003 Bush, rr. shock |
52485-KR3-003 |
from US $6.36 |
||
|
14
|
14
52486-001-000 Collar |
52486-001-000 |
from US $3.18 |
||
|
15
|
15
52489-187-003
Bush,damper
|
52489-187-003 |
— | ||
|
16
|
16
90108-187-000
Bolt, rr. cushion
|
90108-187-000 |
— | ||
|
17
|
17
90516-187-000
Wash,plain 10x24
|
90516-187-000 |
— | ||
|
18
|
18
94021-102000S
Nut, cap (10mm)
|
94021-102000S |
— | ||
|
19
|
19
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
20
|
20
9410310000 Washer, plain, 10mm |
9410310000 |
from US $0.55 |
