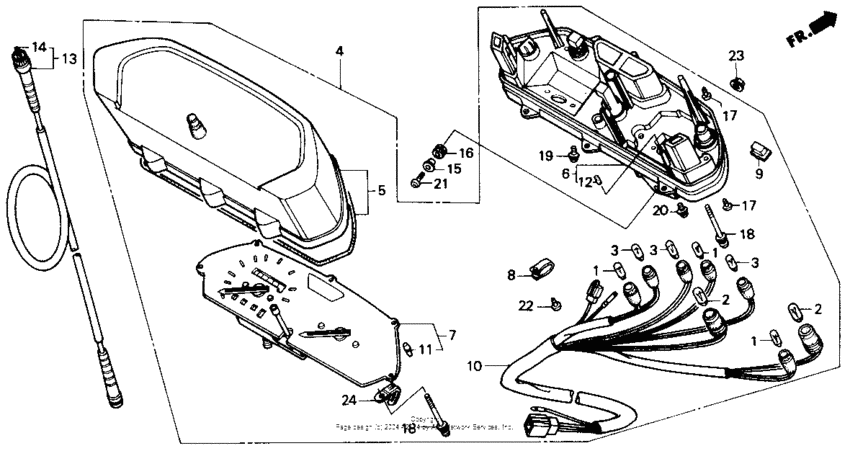

Speedometer + tachometer Diagram Honda NX650 NX650
- Year
- 1989
- Model code
- NX650 A
- Sales region
- USA
- Frame
- JH2RD020*KK100001 -
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
34908-KM1-671 Bulb, wedge base (t6.5) (12v 3w) |
34908-KM1-671 |
from US $2.59 |
||
|
2
|
2
34908-MB9-871 Bulb, wedge base (t10) (12v 1.7w) (stanley) |
34908-MB9-871 |
from US $2.37 |
||
|
3
|
3
34908-MG9-951 Bulb, wedge base (12v 1.7w) |
34908-MG9-951 |
from US $2.29 |
||
|
4
|
4
37100-MN9-671
Meter assy,combin
|
37100-MN9-671 |
— | ||
|
5
|
5
37102-MN9-791
Case assy.,upper
|
37102-MN9-791 |
— | ||
|
6
|
6
37103-MN9-771
Case assy. (lower)
|
37103-MN9-771 |
— | ||
|
7
|
7
37110-MN9-671
Meter, speed & tacho
|
37110-MN9-671 |
— | ||
|
8
|
8
37215-MB6-831 Clamp |
37215-MB6-831 |
from US $2.29 |
||
|
9
|
9
37216-GJ8-701 Grommet |
37216-GJ8-701 |
US $2.79 |
||
|
10
|
10
37222-MN9-611
Socket comp.
|
37222-MN9-611 |
— | ||
|
11
|
11
37304-KM7-911 Rubber, cushion |
37304-KM7-911 |
from US $7.10 |
||
|
12
|
12
37304-198-901 Rubber, cushion |
37304-198-901 |
from US $2.29 |
||
|
13
|
13
44830-MY2-620 Cable, speedometer |
44830-MY2-620 |
US $34.14 |
||
|
14
|
14
44831-MN9-000 Cable,inner |
44831-MN9-000 |
US $7.55 |
||
|
15
|
15
52159-KB7-000 Collar, chain guard |
52159-KB7-000 |
from US $4.29 |
||
|
16
|
16
80105-MG9-000 Cushion, air cleaner |
80105-MG9-000 |
from US $3.63 |
||
|
17
|
17
90032-KW3-008 Screw,tapping,4x1 |
90032-KW3-008 |
from US $2 |
||
|
18
|
18
90133-SG0-A01
Screw
|
90133-SG0-A01 |
— | ||
|
19
|
19
90101-GG2-008 Screw, flange (4x10) |
90101-GG2-008 |
from US $2.59 |
||
|
20
|
20
90102-KM9-008 Screw-washer, 3x8 |
90102-KM9-008 |
US $1.70 |
||
|
21
|
21
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
22
|
22
93903-24380 ScrewTAPPING, 4X12 |
93903-24380 |
from US $0.37 |
||
|
23
|
23
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
24
|
24
94591-28000 Clip,2x80 |
94591-28000 |
US $1.63 |
