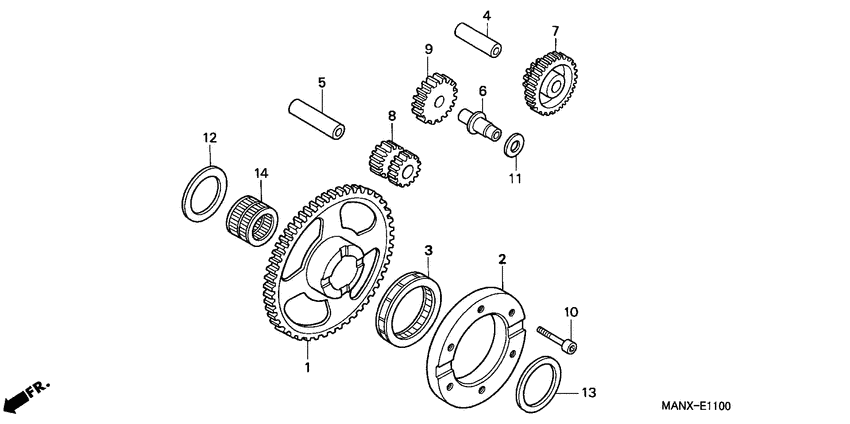

Starting clutch Diagram Honda NX650 Dominator
- Year
- 1999
- Model code
- NX650X
- Sales region
- Italy
- Frame
- ZDCRD08B0XF300001 - ZDCRD08B0XF399999
- Engine Capacity
- 650
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
28110-MN9-000 Gear (80t) |
28110-MN9-000 |
from US $141.44 |
||
|
2
|
2
28121-MN9-003 Clutch outer |
28121-MN9-003 |
from US $68 |
||
|
3
|
3
28126-MK5-004 Clutch, one-way |
28126-MK5-004 |
from US $64.46 |
||
|
4
|
4
28132-MK5-000 Shaft c, idle gear |
28132-MK5-000 |
from US $7.70 |
||
|
5
|
5
28133-MN9-000 Shaft a, idle gear |
28133-MN9-000 |
US $11.49 |
||
|
6
|
6
28134-MAN-690 Shaft b, idle gear |
28134-MAN-690 |
US $27.42 |
||
|
7
|
7
28232-MAN-690 Gear c (52t/13t) |
28232-MAN-690 |
from US $58.85 |
||
|
8
|
8
28233-MAN-690 Gear a (13t/14t) |
28233-MAN-690 |
from US $50.28 |
||
|
9
|
9
28234-MAN-690 Gear b, idle (21t) |
28234-MAN-690 |
from US $32.38 |
||
|
10
|
10
90010-MK5-000 Bolt, socket (8mm) |
90010-MK5-000 |
from US $3.18 |
||
|
11
|
11
90401-MK5-000 Washer (12.2mm) |
90401-MK5-000 |
from US $2 |
||
|
12
|
12
90402-MK5-000 Washer (34.1mm) |
90402-MK5-000 |
from US $6.81 |
||
|
13
|
13
90403-MK5-000 Washer (34.1mm) |
90403-MK5-000 |
from US $6.07 |
||
|
14
|
14
91061-MN9-003 Bearing (34x40x23.7) |
91061-MN9-003 |
from US $14.50 |
