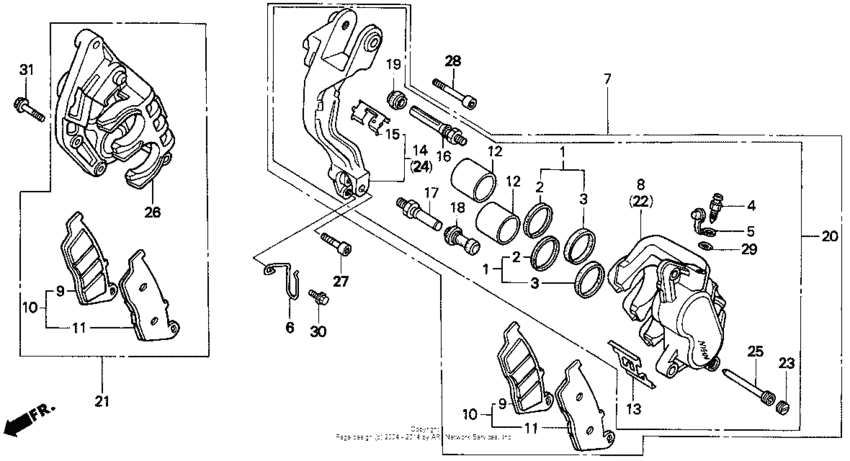

Front brake caliper Diagram Honda PC800 Pacific Coast
- Year
- 1994
- Model code
- PC800 AC
- Sales region
- USA
- Frame
- JH2RC341*RM200001 - JH2RC341*RM200220
- Engine Capacity
- 800
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06431-MA3-405 Seal set, piston |
06431-MA3-405 |
from US $6.03 |
||
|
4
|
4
43352-MG9-006 Screw, bleeder |
43352-MG9-006 |
from US $4.59 |
||
|
5
|
5
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $3.18 |
||
|
6
|
6
44832-MR5-000 Clamp |
44832-MR5-000 |
US $3.66 |
||
|
10
|
10
45105-ML7-405 Pad set, fr. brake |
45105-ML7-405 |
from US $58.09 |
||
|
12
|
12
45107-ML4-006 Piston |
45107-ML4-006 |
from US $19.42 |
||
|
13
|
13
45108-ML7-922 Spring, pad |
45108-ML7-922 |
from US $5.77 |
||
|
14
|
14
45110-MR5-006 Bracket, l. fr. |
45110-MR5-006 |
US $123.22 |
||
|
15
|
15
45112-ML7-921 Retainer |
45112-ML7-921 |
from US $4.04 |
||
|
16
|
16
45131-ML7-921 Bolt a, pin |
45131-ML7-921 |
from US $9.49 |
||
|
17
|
17
45131-166-016 Pin, bolt |
45131-166-016 |
from US $4.29 |
||
|
18
|
18
45132-166-016 Bush, pin |
45132-166-016 |
from US $1.46 |
||
|
19
|
19
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.66 |
||
|
20
|
20
45150-MR5-305
Caliper sub-assy.
|
45150-MR5-305 |
— | ||
|
23
|
23
45203-MG3-016 Plug, pin |
45203-MG3-016 |
from US $2.21 |
||
|
24
|
24
45210-MR5-006 Bracket, r. fr. |
45210-MR5-006 |
US $123.22 |
||
|
25
|
25
45215-ML7-922 Pin, hanger |
45215-ML7-922 |
from US $4.50 |
||
|
26
|
26
45250-MR5-305 Caliper sub-assy. |
45250-MR5-305 |
US $336.94 |
||
|
27
|
27
90105-MJ1-000 Bolt, socket (6x25) |
90105-MJ1-000 |
from US $4.59 |
||
|
28
|
28
90131-ML7-000 Bolt, socket (8x36) |
90131-ML7-000 |
from US $3.51 |
||
|
29
|
29
91355-MG9-006 O-ring (5.8x1.9) |
91355-MG9-006 |
from US $2.80 |
||
|
30
|
30
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.49 |
||
|
31
|
31
96400-0803207 Bolt, flange (8x32) |
96400-0803207 |
from US $0.81 |
