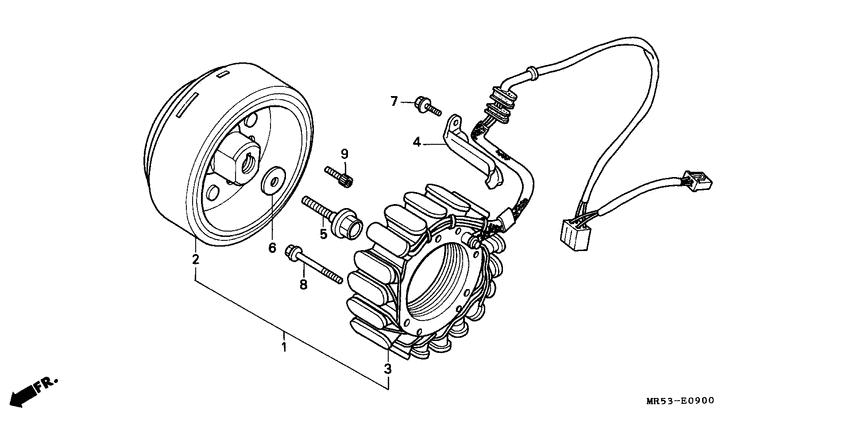

Generator Diagram Honda PC800 Pacific Coast
- Year
- 1990
- Model code
- PC800L
- Sales region
- Italy
- Frame
- RC342100001 - RC342100500
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-MR5-870
Alternator assy.
- 2103345 |
31100-MR5-870 |
— | ||
| replacement | |||||
|
1
|
1
31100-MR5-871
Alternator assy.
- 2103345 |
31100-MR5-871 |
— | ||
|
1
|
1
31100-MR5-871
Alternator assy.
2103346 - |
31100-MR5-871 |
— | ||
|
2
|
2
31110-MR5-005 Flywheel |
31110-MR5-005 |
US $537.51 |
||
|
3
|
3
31120-MR5-870
Stator
- 2103345 |
31120-MR5-870 |
— | ||
| replacement | |||||
|
3
|
3
31120-MR5-871
Stator
- 2103345 |
31120-MR5-871 |
— | ||
|
3
|
3
31120-MR5-871
Stator
2103346 - |
31120-MR5-871 |
— | ||
|
4
|
4
32961-MR5-000 Clamp |
32961-MR5-000 |
US $16.13 |
||
|
5
|
5
90026-MK7-670
Bolt, flange (12x45)
|
90026-MK7-670 |
— | ||
|
6
|
6
90402-PC6-000 Washer12.5X34X5 |
90402-PC6-000 |
from US $7.49 |
||
|
7
|
7
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
8
|
8
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.34 |
||
|
9
|
9
96700-0802218 Bolt, socket (8x22) |
96700-0802218 |
from US $0.81 |
||
