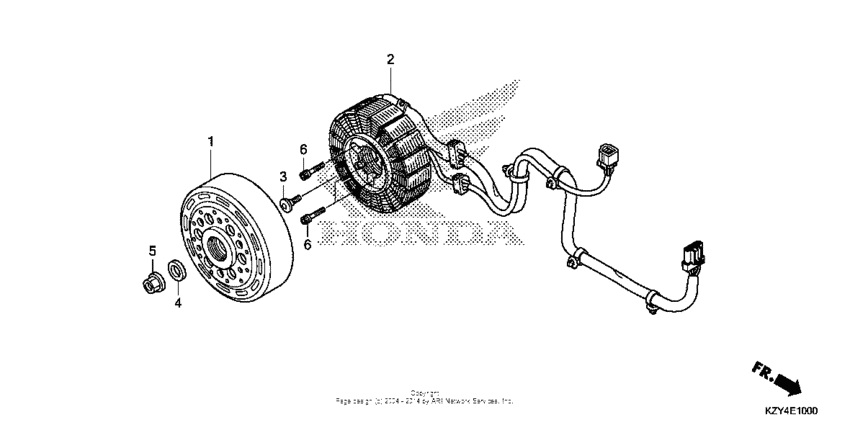

Alternator stator Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31210-KZY-901 Flywheel |
31210-KZY-901 |
from US $130.51 |
||
|
2
|
2
31220-KZY-901 Stator |
31220-KZY-901 |
from US $217.26 |
||
|
3
|
3
90001-KWR-000 Bolt,socket 6x18 |
90001-KWR-000 |
from US $0.85 |
||
|
4
|
4
90439-KWZ-900 Washer (12x24x2.3) |
90439-KWZ-900 |
from US $1.34 |
||
|
5
|
5
94050-12000 Nut, flange, 12mm |
94050-12000 |
from US $0.81 |
||
|
6
|
6
96700-0603200 Bolt, socket (6x32) |
96700-0603200 |
from US $0.74 |
