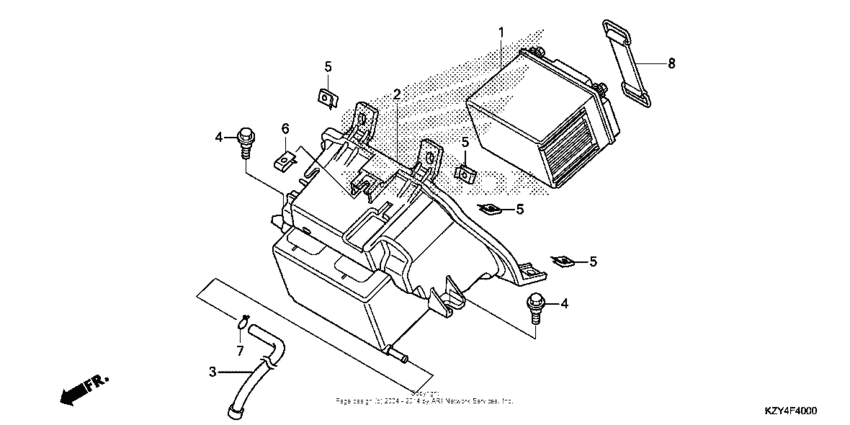

Battery Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31500-HP1-601AH
Battery (ytz7s)
|
31500-HP1-601AH |
— | ||
|
2
|
2
81320-KWN-711 Box, battery |
81320-KWN-711 |
from US $20.29 |
||
|
3
|
3
81321-KWN-710 Tube, battery drain |
81321-KWN-710 |
US $18.75 |
||
|
4
|
4
90116-KVB-900 Bolt,flange 6mm |
90116-KVB-900 |
from US $1.45 |
||
|
5
|
5
90305-GEE-710 Nut, clip (6mm) |
90305-GEE-710 |
from US $1.70 |
||
|
6
|
6
90677-KAN-T00 Nut,clip 5mm |
90677-KAN-T00 |
from US $0.97 |
||
|
7
|
7
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
||
|
8
|
8
9501212001 Band b1, battery |
9501212001 |
from US $3.48 |
