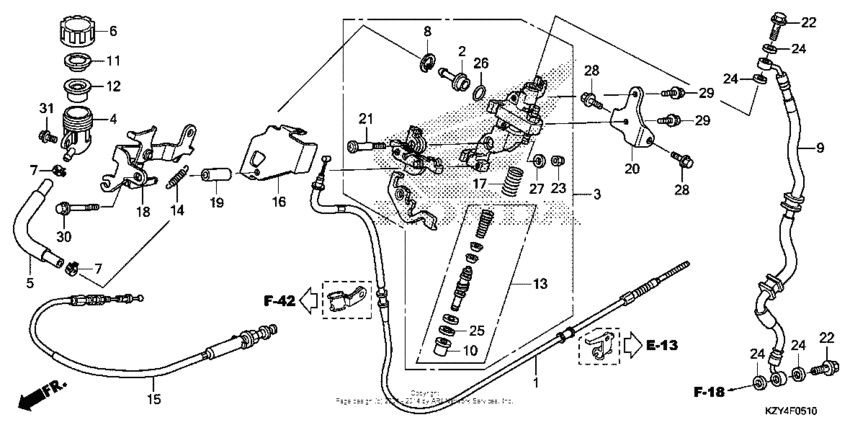

Brake master cylinder (cbs) Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
43450-KWN-711 Cable, rr. |
43450-KWN-711 |
from US $30.60 |
||
|
2
|
2
43503-KZ3-B01 Connector |
43503-KZ3-B01 |
from US $9.92 |
||
|
3
|
3
43510-KWN-671 Sub assy,m/c |
43510-KWN-671 |
US $116.30 |
||
| replacement | |||||
|
3
|
3
43510-K36-305 M/CYL SUB-ASSY |
43510-K36-305 |
US $116.30 |
||
|
4
|
4
43511-KS6-702 Cup |
43511-KS6-702 |
from US $14.01 |
||
|
5
|
5
43512-MW0-006 Hose |
43512-MW0-006 |
from US $12.83 |
||
|
6
|
6
43513-KWN-671 Cap,m/c |
43513-KWN-671 |
US $9.91 |
||
|
7
|
7
43514-KS6-701 Clamp |
43514-KS6-701 |
from US $10.95 |
||
|
8
|
8
43517-KS6-701 Circlip, rr. |
43517-KS6-701 |
from US $3.03 |
||
|
9
|
9
45127-KWN-711 Hose, cbs |
45127-KWN-711 |
from US $42.57 |
||
|
10
|
10
45504-410-003 Boot |
45504-410-003 |
from US $4.90 |
||
|
11
|
11
45518-GM9-711 Plate, diaphragm |
45518-GM9-711 |
from US $3.89 |
||
|
12
|
12
45520-GM9-711 Diaphragm |
45520-GM9-711 |
from US $7.15 |
||
|
13
|
13
45530-KVY-911 Cylinder set, Master |
45530-KVY-911 |
from US $31.01 |
||
|
14
|
14
46510-KJ9-000 Spring |
46510-KJ9-000 |
from US $2.22 |
||
|
15
|
15
46620-KZY-911 Cable, brake lock |
46620-KZY-911 |
US $158.90 |
||
|
16
|
16
47602-KWN-671 Cvr, master cylinder |
47602-KWN-671 |
US $15.15 |
||
|
17
|
17
47604-KWN-931 Spring,delay |
47604-KWN-931 |
from US $1.16 |
||
|
18
|
18
47660-KWN-670 Stay comp,brake l |
47660-KWN-670 |
US $134.49 |
||
|
19
|
19
47665-KWN-670 Collar,brake lock |
47665-KWN-670 |
US $3.69 |
||
|
20
|
20
50320-KWN-931 Stay,m/c |
50320-KWN-931 |
from US $3.84 |
||
|
21
|
21
90114-GEV-712 Bolt,pivot |
90114-GEV-712 |
from US $2.23 |
||
|
22
|
22
90145-MS9-612 Bolt, oil (10x22) |
90145-MS9-612 |
from US $6.96 |
||
|
23
|
23
90301-GEV-711 Nut,u,6mm |
90301-GEV-711 |
from US $1.04 |
||
|
24
|
24
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
25
|
25
90651-MA5-671 Circlip |
90651-MA5-671 |
from US $2.59 |
||
|
26
|
26
91212-422-006 O-ring (14.8x2.4) |
91212-422-006 |
from US $3.11 |
||
|
27
|
27
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
28
|
28
95701-060-160-0 BoltFLANGE, 6X16 |
95701-060-160-0 |
from US $0.52 |
||
|
29
|
29
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
30
|
30
95701-060-450-7 BoltFLANGE, 6X45 |
95701-060-450-7 |
from US $0.74 |
||
|
31
|
31
96001-060-140-0 BoltFLANGE, 6X14 |
96001-060-140-0 |
from US $0.59 |
||
