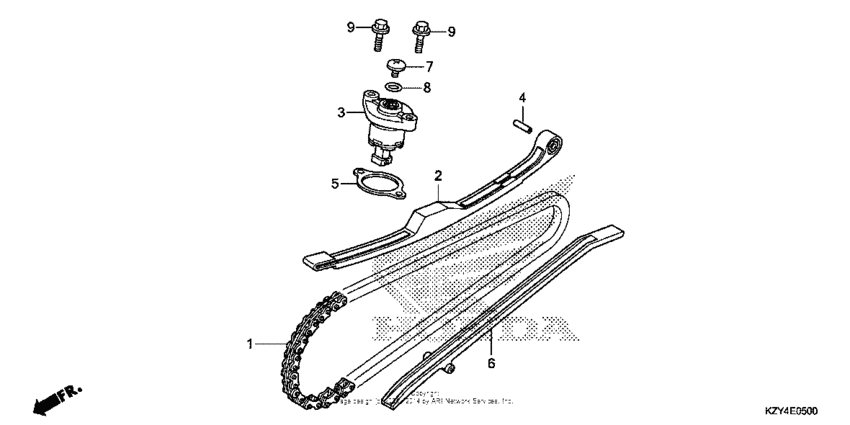

Cam chain + tensioner Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14401-KSS-931 Chain,camdid scr- |
14401-KSS-931 |
from US $39.03 |
||
|
2
|
2
14510-KZR-600 Tensioner, cam chain |
14510-KZR-600 |
from US $15.18 |
||
|
3
|
3
14520-KZR-601 Lifter, tensioner |
14520-KZR-601 |
US $46.87 |
||
| replacement | |||||
|
3
|
3
14520-KZR-602 Lifter assy,tensione |
14520-KZR-602 |
from US $51.27 |
||
|
4
|
4
14531-KZR-600 Pivot |
14531-KZR-600 |
from US $0.97 |
||
|
5
|
5
14560-KZR-600 Gasket |
14560-KZR-600 |
from US $1.82 |
||
|
6
|
6
14611-KWN-900 Guide,cam chain |
14611-KWN-900 |
from US $1.92 |
||
|
7
|
7
90005-KY7-000 Screw, pan (6x6) |
90005-KY7-000 |
from US $1.78 |
||
|
8
|
8
91306-MG3-000 O-ring (1.5x9.5) |
91306-MG3-000 |
from US $2.44 |
||
|
9
|
9
95701-0602200 Bolt, flange, 6x22 |
95701-0602200 |
from US $0.59 |
||
