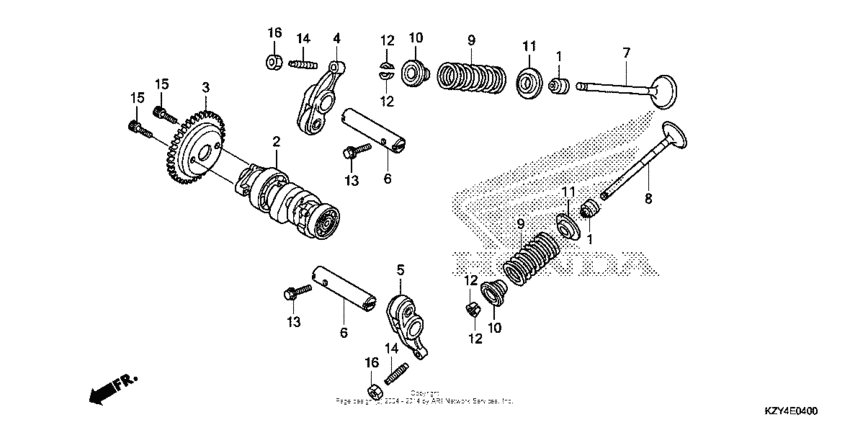

Camshaft + valve Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-GB4-681 Seal, valve stem (nok) |
12209-GB4-681 |
from US $3.47 |
||
|
2
|
2
14100-KZR-600 Camshaft |
14100-KZR-600 |
from US $54.64 |
||
| replacement | |||||
|
2
|
2
14100-KZR-601 New Genuine Part |
14100-KZR-601 |
from US $54.64 |
||
|
3
|
3
14321-KWN-900 Sprocket,cam |
14321-KWN-900 |
from US $5.73 |
||
|
4
|
4
14430-KZR-600 Arm, in vlv rocker |
14430-KZR-600 |
from US $26.15 |
||
|
5
|
5
14440-KZR-600 Arm, ex. vlv rocker |
14440-KZR-600 |
from US $27.68 |
||
|
6
|
6
14451-KZR-600 Shaft, rocker arm |
14451-KZR-600 |
from US $2.87 |
||
|
7
|
7
14711-KZY-700 Valve, in |
14711-KZY-700 |
from US $10.18 |
||
|
8
|
8
14721-KZY-700 Valve, ex |
14721-KZY-700 |
from US $22.17 |
||
|
9
|
9
14751-KWN-900 Spg,valve |
14751-KWN-900 |
from US $2.50 |
||
|
10
|
10
14771-KWN-900 Retainer,valve sp |
14771-KWN-900 |
from US $2.43 |
||
|
11
|
11
14775-KZR-600 Seat, valve spring |
14775-KZR-600 |
from US $2.96 |
||
|
12
|
12
14781-MA6-000 Cotter, valve |
14781-MA6-000 |
from US $4.14 |
||
|
13
|
13
90002-KWB-600 Bolt,flange 5x12 |
90002-KWB-600 |
from US $1.38 |
||
|
14
|
14
90012-KWB-600 Screw,tappet adju |
90012-KWB-600 |
from US $1.26 |
||
|
15
|
15
90083-KVB-900 Bolt (5mm) |
90083-KVB-900 |
from US $0.65 |
||
|
16
|
16
90206-001-000 Nut, tappet adjusting |
90206-001-000 |
from US $2.41 |
||
