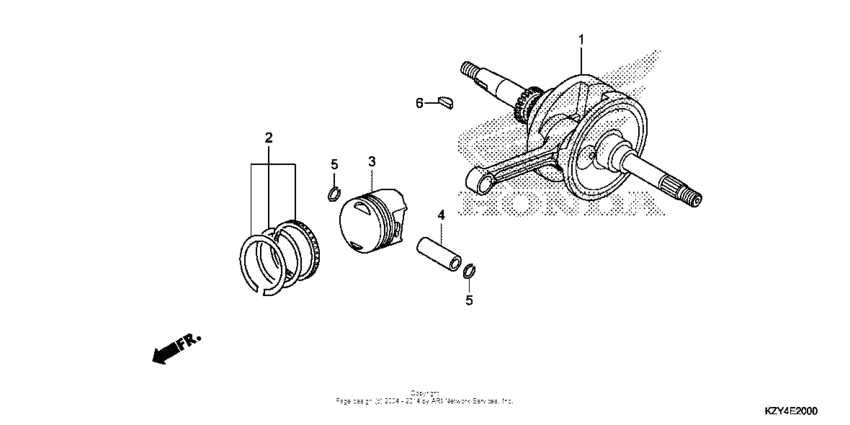

Crankshaft + piston Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
13000-KZY-701 Crankshaft |
13000-KZY-701 |
from US $160.38 |
||
|
2
|
2
13011-KZY-700 Ring set (std) |
13011-KZY-700 |
from US $16 |
||
|
2
|
2
13021-KZY-700 Ring set (0.25)(Optional). |
13021-KZY-700 |
US $16 |
||
|
2
|
2
13031-KZY-700 Ring set (0.50)(Optional). |
13031-KZY-700 |
US $15.28 |
||
|
3
|
3
13101-KZY-700 Piston |
13101-KZY-700 |
from US $33.81 |
||
|
3
|
3
13102-KZY-700 Piston (0.25)(Optional). |
13102-KZY-700 |
US $50.08 |
||
|
3
|
3
13103-KZY-700 Piston (0.50)(Optional). |
13103-KZY-700 |
US $50.08 |
||
|
4
|
4
13111-KGF-910 Pin.piston |
13111-KGF-910 |
from US $8.29 |
||
|
5
|
5
13115-KZY-700 Clip (14mm) |
13115-KZY-700 |
from US $1.34 |
||
|
6
|
6
90701-HB6-010 Key (25x14x4) |
90701-HB6-010 |
from US $2.87 |
