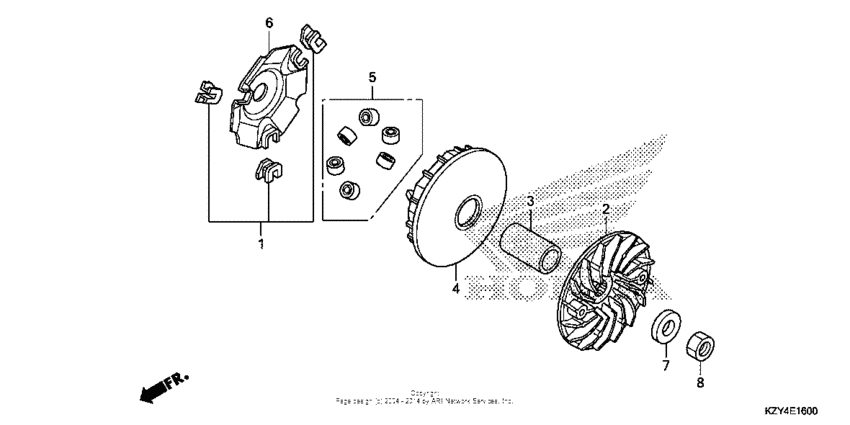

Drive face Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
22011-KWN-900 Piece set,slide |
22011-KWN-900 |
from US $5.37 |
||
|
2
|
2
22102-KZR-600 Face, drive |
22102-KZR-600 |
from US $31.82 |
||
|
3
|
3
22105-KWN-900 Boss,drive face |
22105-KWN-900 |
from US $7.67 |
||
|
4
|
4
22110-KZY-701 Face, movable drive |
22110-KZY-701 |
from US $64.19 |
||
|
5
|
5
22123-KWN-900 roller set, weight |
22123-KWN-900 |
from US $14.16 |
||
|
6
|
6
22131-KWN-900 Plate,ramp |
22131-KWN-900 |
from US $12.12 |
||
|
7
|
7
90401-KWN-900 Washer,15x29x7 |
90401-KWN-900 |
from US $2.92 |
||
|
8
|
8
9403014200 Nut, hex. (14mm) |
9403014200 |
from US $0.74 |
