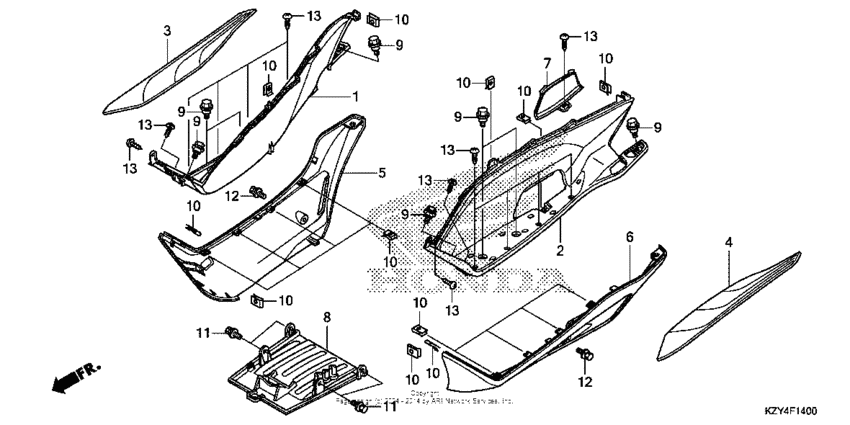

Floor step Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64311-KWN-710ZC Step, r. floor *nh1* |
64311-KWN-710ZC |
from US $43.88 |
||
|
2
|
2
64321-KWN-710ZC Step, l. floor *nh1* |
64321-KWN-710ZC |
from US $42.16 |
||
|
3
|
3
64325-KWN-900 Mat,r floor |
64325-KWN-900 |
from US $6.31 |
||
|
4
|
4
64326-KWN-900 Mat,l floor |
64326-KWN-900 |
from US $6.31 |
||
|
5
|
5
64431-KWN-900ZA New Genuine PartAsteroid black metallic NHA35M; |
64431-KWN-900ZA |
from US $35.09 |
||
|
5
|
5
64431-KWN-900ZC Cover,r si*r340c*Candy rosy red R340C; |
64431-KWN-900ZC |
from US $50.07 |
||
|
6
|
6
64432-KWN-900ZA New Genuine PartAsteroid black metallic NHA35M; |
64432-KWN-900ZA |
from US $28.58 |
||
|
6
|
6
64432-KWN-900ZC Cover,l si*r340c*Candy rosy red R340C; |
64432-KWN-900ZC |
from US $63.60 |
||
|
7
|
7
64434-KWN-710ZC Lid *nh1* |
64434-KWN-710ZC |
from US $3.57 |
||
|
8
|
8
64530-KWN-710 Cover (lower) |
64530-KWN-710 |
from US $5.27 |
||
|
9
|
9
90116-KVB-900 Bolt,flange 6mm |
90116-KVB-900 |
from US $1.45 |
||
|
10
|
10
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
11
|
11
93404-0601200 Bolt-washer, 6x12 |
93404-0601200 |
from US $0.52 |
||
|
12
|
12
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
13
|
13
93903-34420
Screw
|
93903-34420 |
— |
