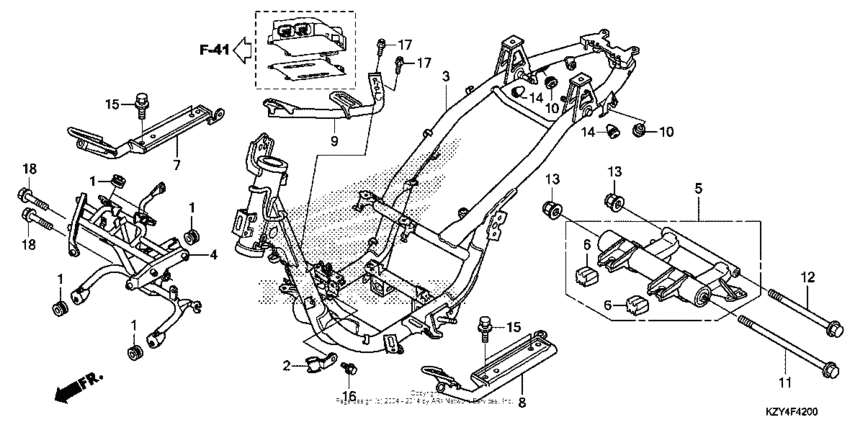

Frame Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19051-KA4-000 Rubber, radiator mounting |
19051-KA4-000 |
from US $3.40 |
||
|
2
|
2
43456-KWN-710 Clamp a, rr. |
43456-KWN-710 |
from US $5.56 |
||
|
3
|
3
50100-KZY-910 Frame |
50100-KZY-910 |
US $453.97 |
||
|
4
|
4
50310-KZY-910 Stay, fr. cover |
50310-KZY-910 |
US $77.35 |
||
|
5
|
5
50350-KWN-710 Link, engine hanger |
50350-KWN-710 |
from US $52.75 |
||
|
6
|
6
50352-KWN-710 Rubber, link stopper |
50352-KWN-710 |
from US $5.48 |
||
|
7
|
7
50620-KWN-710 Stay, r. floor |
50620-KWN-710 |
from US $43.11 |
||
|
8
|
8
50621-KWN-710 Stay, l. floor |
50621-KWN-710 |
from US $37.98 |
||
|
9
|
9
50622-KWN-710 Stay, ecu |
50622-KWN-710 |
from US $11.51 |
||
|
10
|
10
83601-MN5-000 Grommet, side cover |
83601-MN5-000 |
from US $2.52 |
||
|
11
|
11
90105-KVY-900 Bolt, flg (10x270) |
90105-KVY-900 |
from US $5.77 |
||
|
12
|
12
90106-GCC-C50 Bolt, flg (10x238) |
90106-GCC-C50 |
from US $7.55 |
||
|
13
|
13
90304-KGH-901 Nut,u,10mm |
90304-KGH-901 |
from US $2.74 |
||
|
14
|
14
90899-422-610 Plug, cone type |
90899-422-610 |
from US $3.04 |
||
|
15
|
15
93404-080-160-0 Bolt-washer8X16 |
93404-080-160-0 |
from US $0.67 |
||
|
16
|
16
95701-060-120-0 BoltFLANGE, 6X12 |
95701-060-120-0 |
from US $0.52 |
||
|
17
|
17
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.52 |
||
|
18
|
18
95801-080-450-8 BoltFLANGE, 8X45 |
95801-080-450-8 |
from US $0.81 |
