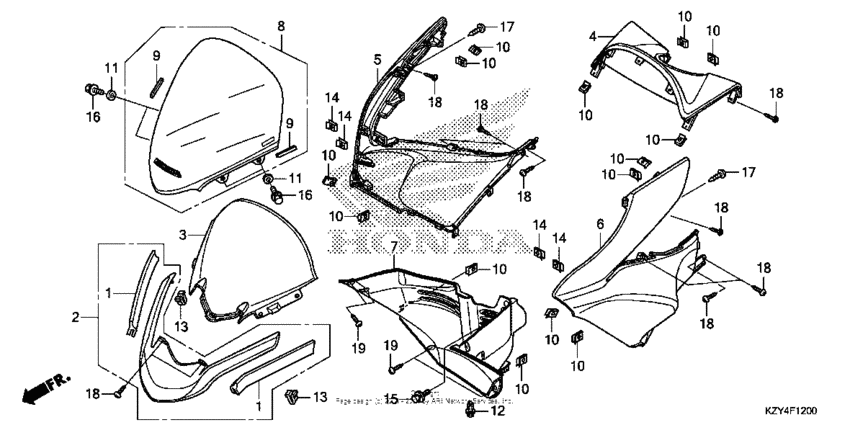

Front cover Diagram Honda PCX150
- Year
- 2013
- Model code
- PCX150 AC
- Sales region
- USA
- Frame
- MLHKF121*D5000001 -
- Engine Capacity
- 150
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64105-KWN-640 Moulding,wind scr |
64105-KWN-640 |
from US $4.88 |
||
|
2
|
2
64300-KWN-640ZB New Genuine PartAsteroid black metallic NHA35M; |
64300-KWN-640ZB |
from US $19.69 |
||
|
2
|
2
64300-KWN-640ZD Grill assy*r340c*Candy rosy red R340C; |
64300-KWN-640ZD |
from US $54.18 |
||
|
3
|
3
64336-KWN-900ZA Panel,fr met*nh1* |
64336-KWN-900ZA |
from US $9.13 |
||
|
4
|
4
64337-KWN-710ZC Panel, rr. *r340c*Candy rosy red R340C; |
64337-KWN-710ZC |
from US $84.32 |
||
|
4
|
4
64337-KWN-710ZE Panel, rr. *nha35m*Asteroid black metallic NHA35M; |
64337-KWN-710ZE |
from US $31.06 |
||
|
5
|
5
64501-KWN-902ZA Cover,r f*nha35m*Asteroid black metallic NHA35M; |
64501-KWN-902ZA |
from US $64.89 |
||
|
5
|
5
64501-KWN-902ZC Cover,r fr*r340c*Candy rosy red R340C; |
64501-KWN-902ZC |
from US $61 |
||
|
6
|
6
64502-KWN-901ZA Cover, l. fr. *nha35m* (asteroid black metallic)Asteroid black metallic NHA35M; |
64502-KWN-901ZA |
US $225.28 |
||
|
6
|
6
64502-KWN-902ZC Cvr,l fr*r340c*Candy rosy red R340C; |
64502-KWN-902ZC |
from US $61 |
||
|
6
|
6
64502-KWN-902ZA Cover,l f*nha35m* |
64502-KWN-902ZA |
from US $66.56 |
||
|
7
|
7
64520-KWN-710ZB Cover, fr. *nh1* |
64520-KWN-710ZB |
from US $30.18 |
||
|
8
|
8
67100-KZY-305ZA Visor set (type1) |
67100-KZY-305ZA |
US $61.18 |
||
|
9
|
9
80109-KWN-700 Sponge rubber |
80109-KWN-700 |
from US $0.75 |
||
|
10
|
10
90302-SA4-003 NutSPRING, 4MM |
90302-SA4-003 |
from US $2.59 |
||
|
11
|
11
90504-KWN-900 Washer,9.5x18 |
90504-KWN-900 |
from US $1.38 |
||
|
12
|
12
90653-HW3-671 Rivet, push (d8) |
90653-HW3-671 |
from US $2.24 |
||
|
13
|
13
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
14
|
14
90677-KAN-T00 Nut,clip 5mm |
90677-KAN-T00 |
from US $0.97 |
||
|
15
|
15
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
16
|
16
93404-060-120-7 Bolt-washer6X12 |
93404-060-120-7 |
from US $0.52 |
||
|
17
|
17
93903-25320 ScrewTAPPING, 5X16 |
93903-25320 |
from US $0.22 |
||
|
18
|
18
93903-34420
Screw
|
93903-34420 |
— | ||
|
19
|
19
93903-34480 ScrewTAPPING, 4X16 |
93903-34480 |
from US $0.37 |
